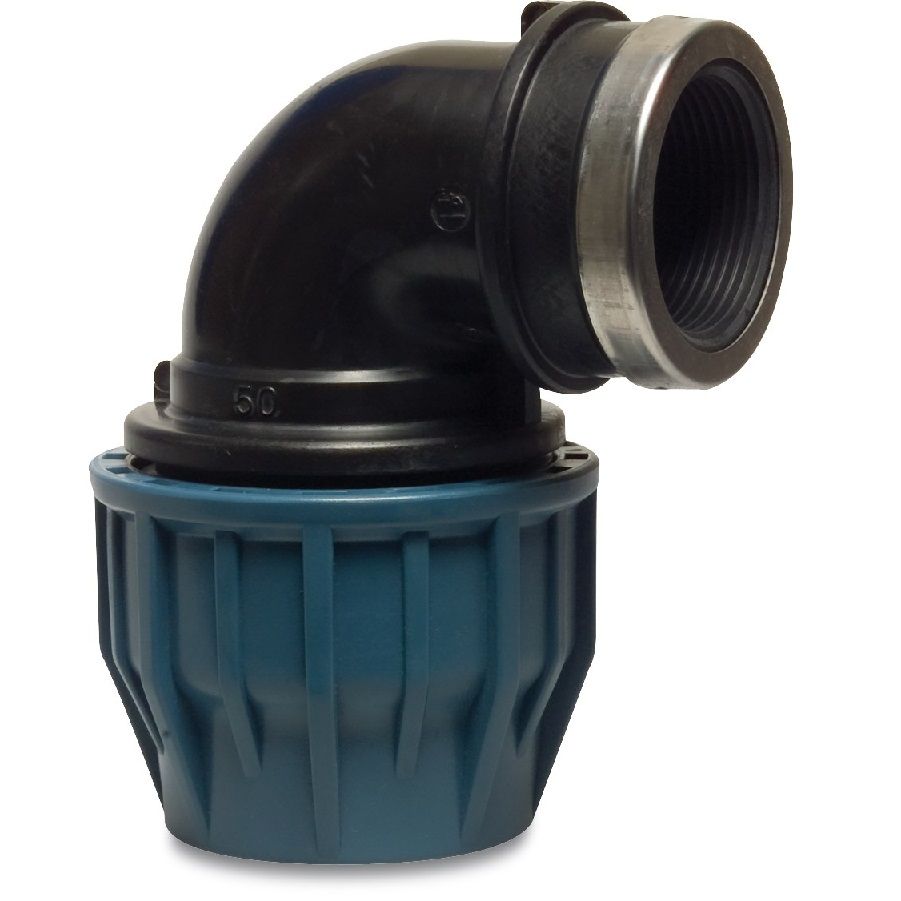

Compression Female Elbow

Product Code: 100IR1063-PRO

Compression Female Elbow offers a compression elbow x female threaded BSP.

Use this at the end of a pipeline to connect a sprinkler or a valve (for example).

Full Description Remove From My Favourites Add to My Favourites

Notice

This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.

Compression Female Elbow offers a compression elbow x female threaded BSP.

Use this at the end of a pipeline to connect a sprinkler or a valve (for example).

Material: Polypropylene (PP)

Connection: compression; tighten the blue nut over the top of the pipe. An o-ring inside the fitting prevents water & pressure from escaping.

Pressure: 16 bar

Compression Female Elbow Sizes

  • 40mm x 1" BSP
  • 40mm x 1 1/4" BSP
  • 40mm x 1 1/2" BSP
  • 50mm x 1" BSP
  • 50mm x 1 1/4" BSP
  • 50mm x 1 1/2" BSP
  • 63mm x 1 1/4" BSP
  • 63mm x 1 12" BSP
