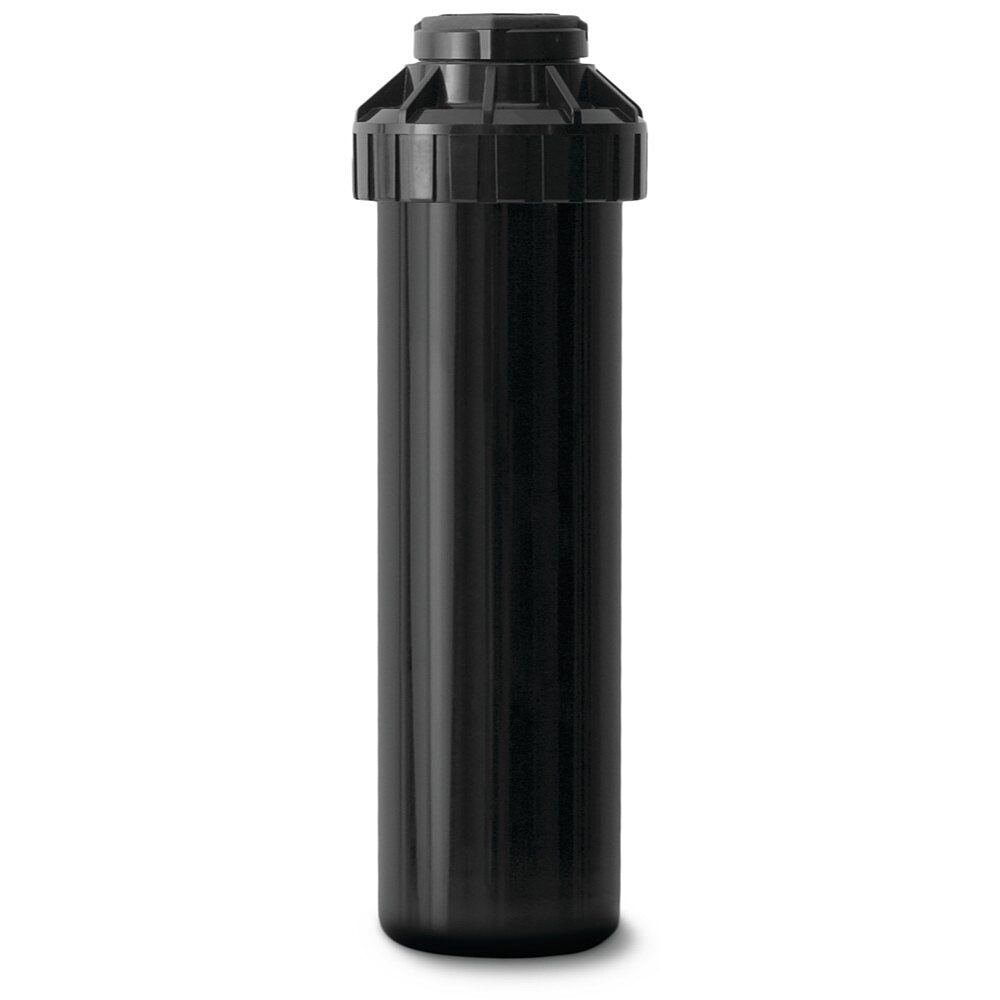

Rain Bird 3500 Series Rotor Sprinkler
The 3500 Series Rotor Sprinkler is an easy to use short- to mid-range ½" gear-driven rotor, throwing 5-10 metres radius at low flow rates. Utilizing a simple flat-bladed screwdriver, the 3500's arc adjustment is quick and simple. This versatile rotor offers an attachable nozzle tree with six superior performing Rain Curtain nozzles, and the convenience of full and part-circle operation in one unit. Plus, a nozzle-removal feature and an easily removable filter screen make maintenance a breeze. All of this, at an affordable price, plus a three-year factory warranty make the 3500 Series rotor tough to beat.
Notice
This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.
The Rain Bird 3500 Series Rotor Sprinkler is an easy to use short- to mid-range ½" gear-driven rotor, throwing 5-10 metres radius at low flow rates. Utilizing a simple flat-bladed screwdriver, the 3500's arc adjustment is quick and simple. This versatile rotor offers an attachable nozzle tree with six superior performing Rain Curtain nozzles, and the convenience of full and part-circle operation in one unit. Plus, a nozzle-removal feature and an easily removable filter screen make maintenance a breeze. All of this, at an affordable price, plus a three-year factory warranty make the 3500 Series rotor tough to beat.
Rain Bird 3500 Series Rotor Features Sprinkler

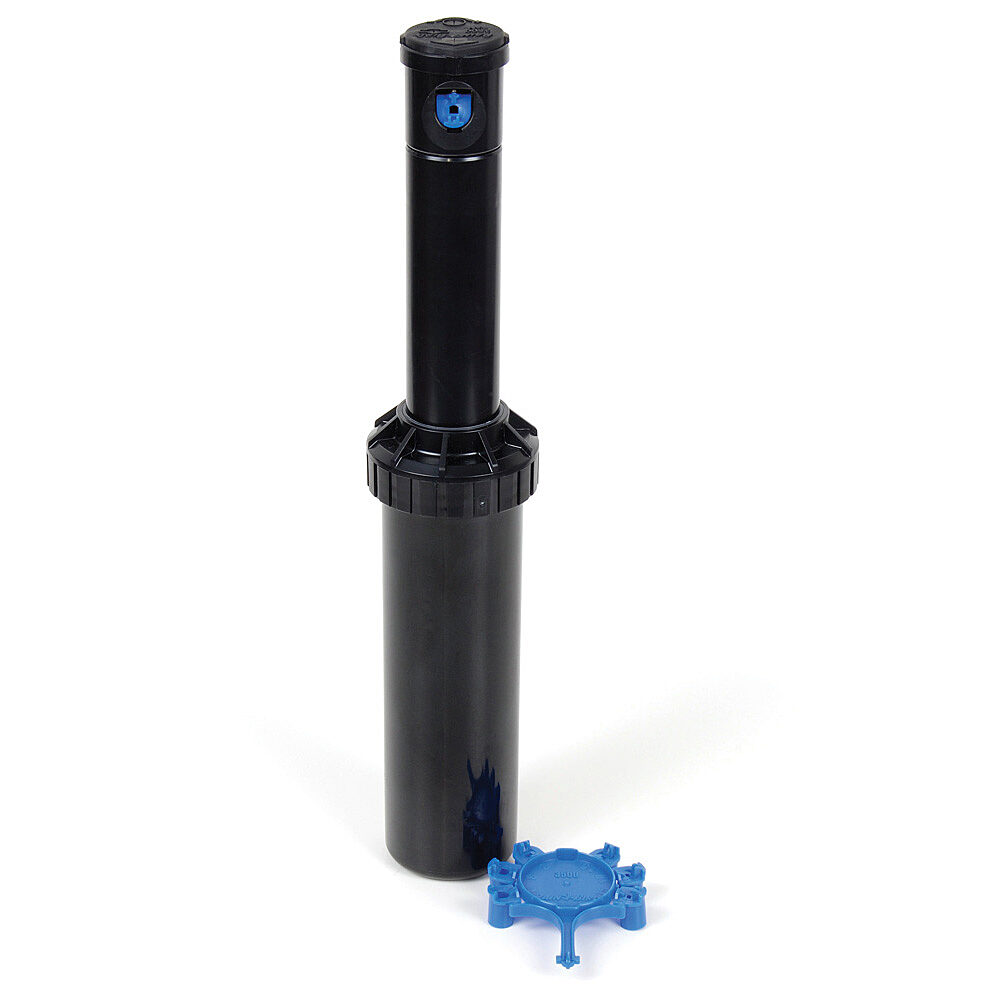

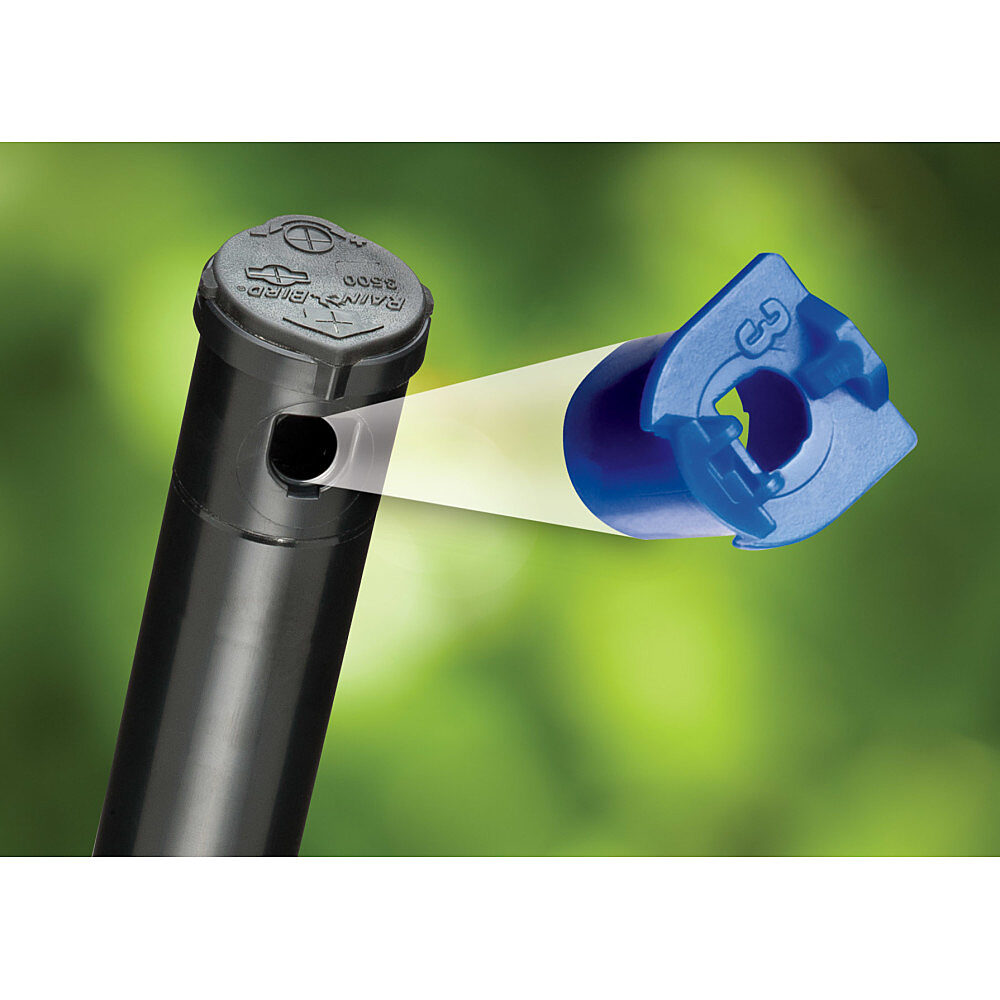

- Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
- Oversized wiper seal prevents leaks and protects internals from debris
- Arc adjustment through the top of the rotor requiring only a flat-blade screwdriver
Rain Bird 3500 Series Rotor Sprinkler Specification
- Precipitation rate: 0.37 to 0.83 inches per hour (9 to 21 mm/h)
- Radius: 15 to 35 feet (4.6 to 10.7 m)
- Radius may be reduced up to 25% with radius reduction screw
- Pressure: 25 to 55 psi (1.7 to 3.8 bar)
- Flow rate: 0.54 to 4.6 gpm (2.0 to 17.4 l/m)
- SAM Seal-A-Matic™ check valve holds up to 7 ft (2.1 m) of elevation change
- 1/2" NPT female bottom threaded inlet
- Reversing full- and part-circle adjustment 40° - 360°
- Nozzle trajectory of 25°
