Fortress Tree Grille

Product Code: 170UR3220-pro

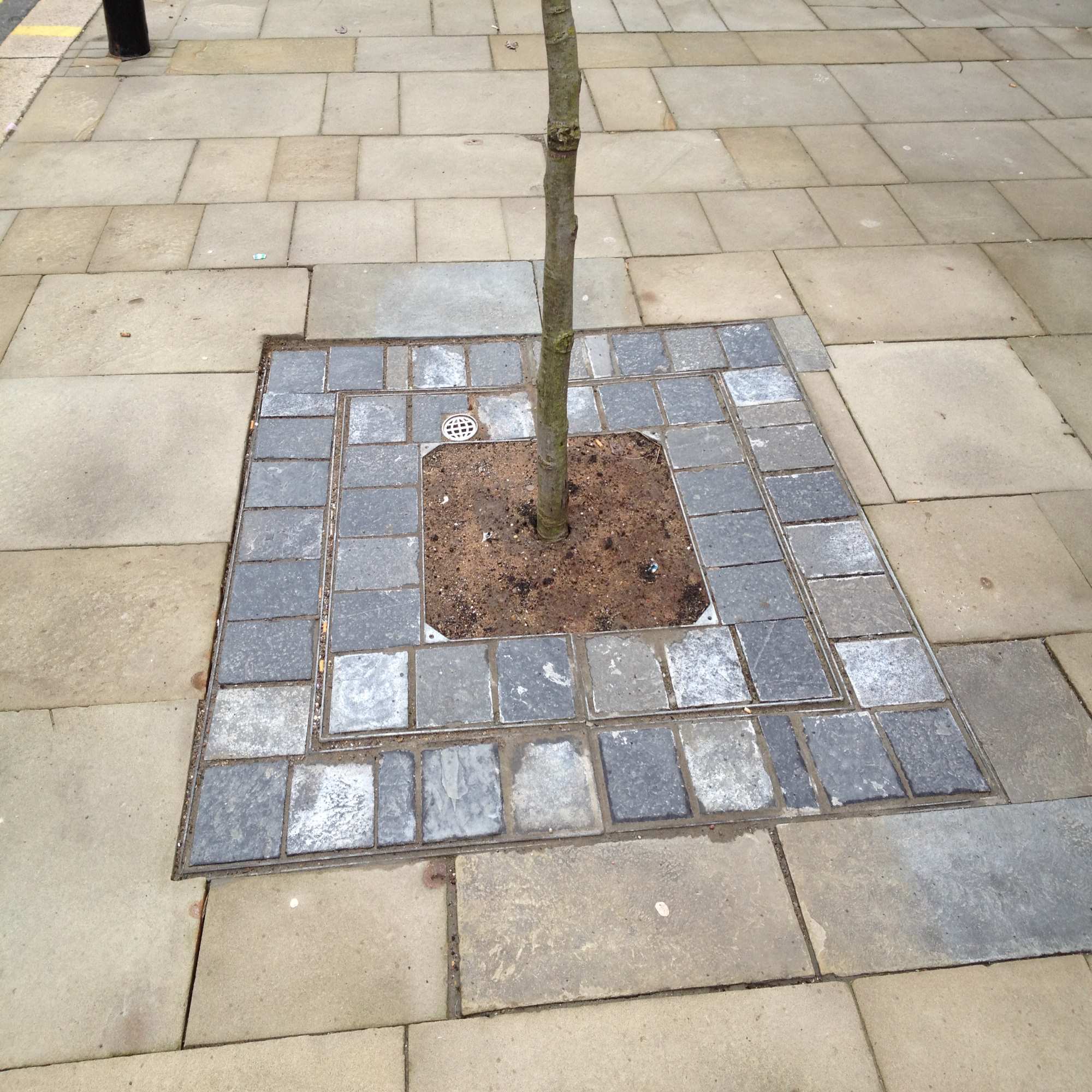

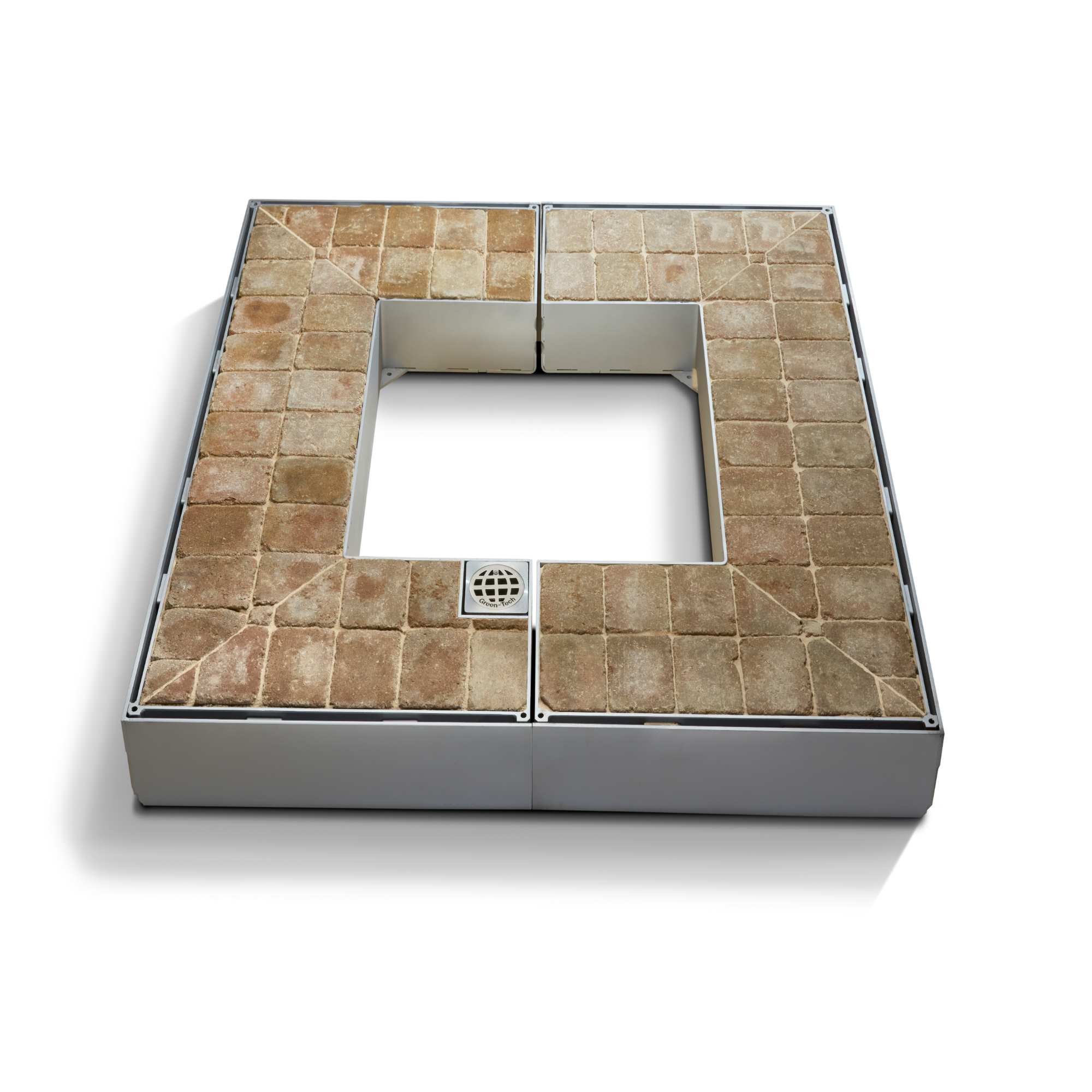

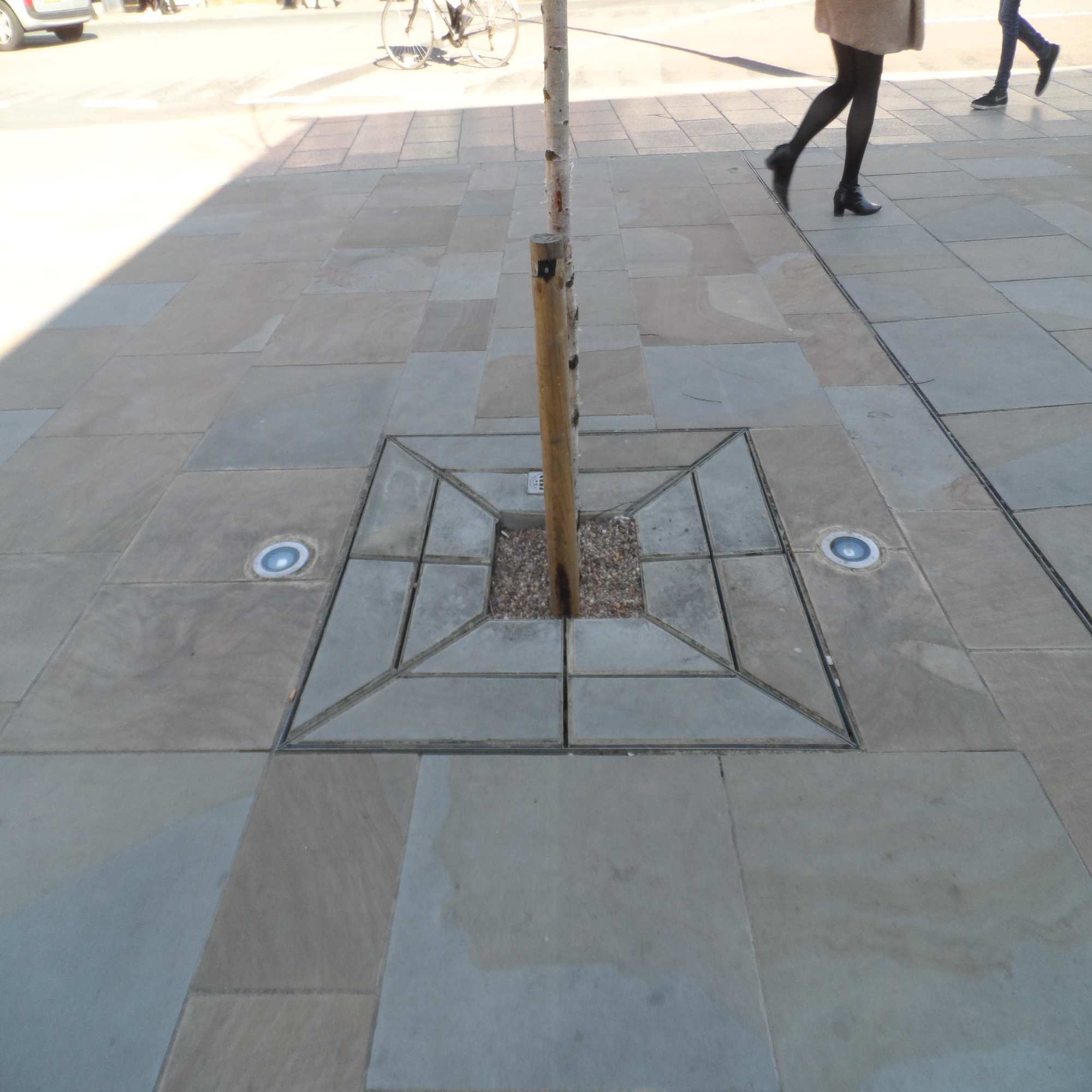

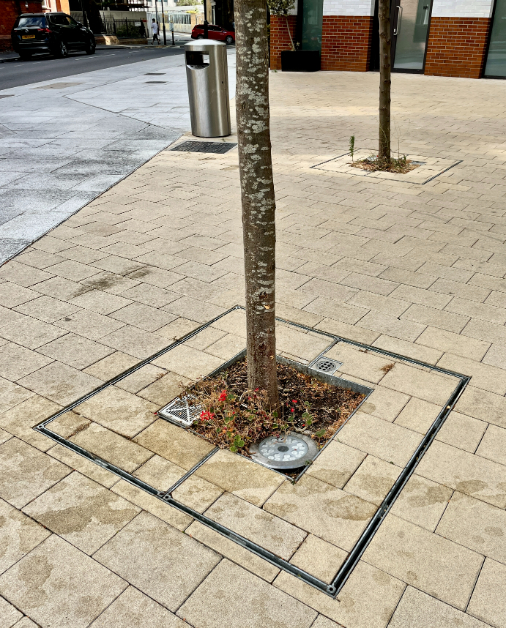

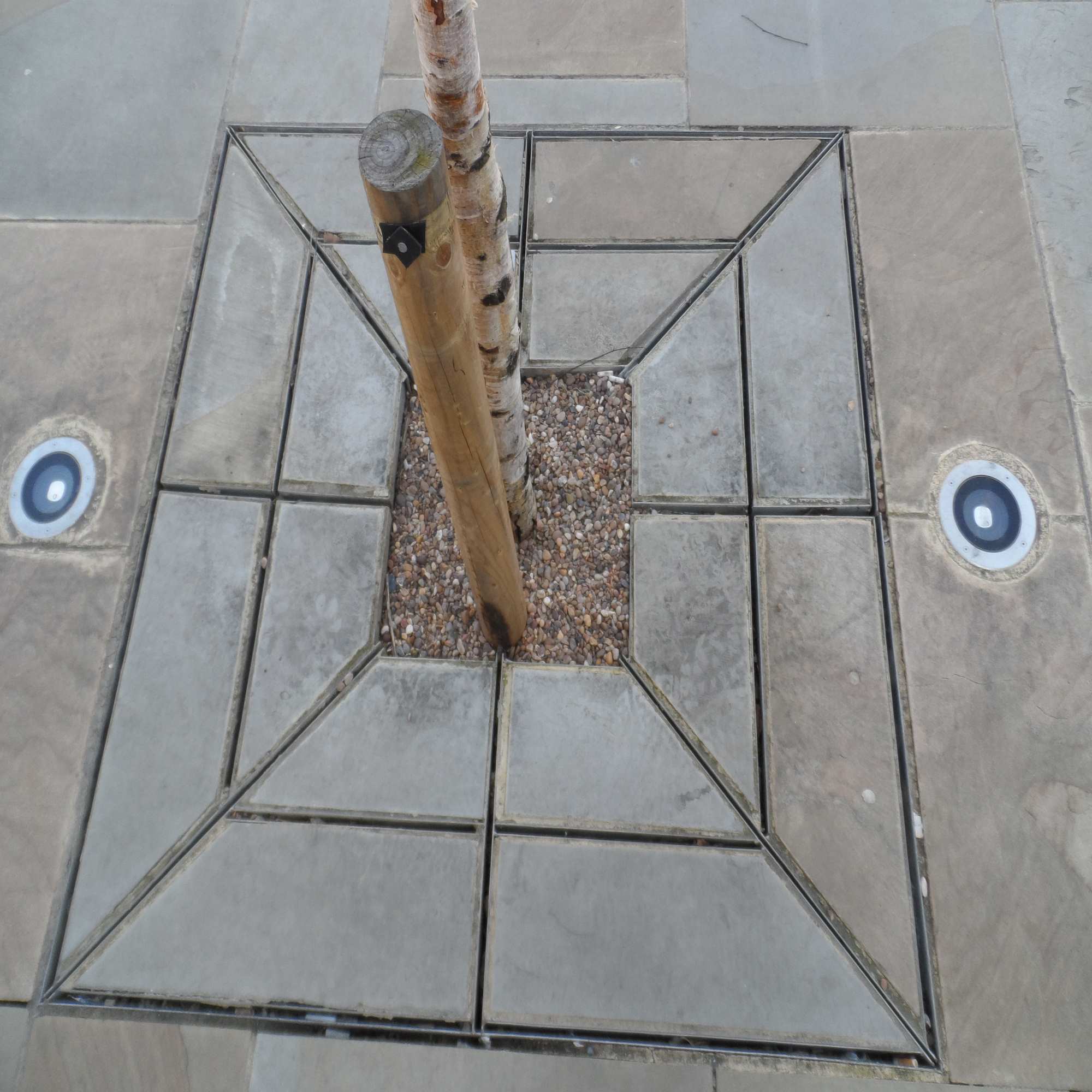

The gt Fortress Tree Grille is a stylish and practical tree grille with the urban setting in mind. The design allows paving to be continued almost up to the tree trunk, protecting the trees root system from urban traffic and soil compaction but also allowing rainwater through to maximise irrigation and urban drainage. To ensure the maintenance of the tree, a Mona Irrigation Unit can be fitted seamlessly into the grille and paving scheme(Mona Irrigation System sold separately). As a standard item, the gt Fortress Tree Grille is ideal for use with block paving, but dimensions of the inner trays can be altered to suit other paving styles. As with all gt tree grilles, the inner trays or grille sections are fastened with security fixings and are fully removable allowing the tree to be removed and replaced if required. Price On Application

Full Description Remove From My Favourites Add to My Favourites
CPD Request CPD Request Copy To Clipboard Copy To Clipboard

Notice

This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.

Union Jack Icon
Made In The UK

The gt Fortress Tree Grille is a stylish and practical tree grille with the urban setting in mind. The design allows paving to be continued almost up to the tree trunk, protecting the trees root system from urban traffic and soil compaction but also allowing rainwater through to maximise irrigation and urban drainage. To ensure the maintenance of the tree, a Mona Irrigation Unit can be fitted seamlessly into the grille and paving scheme (Mona Irrigation System sold separately). As a standard item, the gt Fortress Tree Grille is ideal for use with block paving, but dimensions of the inner trays can be altered to suit other paving styles. As with all gt tree grilles, the inner trays or grille sections are fastened with security fixings and are fully removable allowing the tree to be removed and replaced if required. Price On Application

Grille Size

Aperture

1m x 1m

400mm

1.2m x 1.2m

400mm

Bespoke Sizes Available

Product specification

Finish: Standard Hot Dip Galvanised. Can also be powder coated in any RAL or BS colour.

Optional Finish: Can be manufactured in stainless steel with any grade of finish.

Size: Can be manufactured in any size to suit the paving scheme/pattern.

Tree Guard: Normally not required with this design, but a guard can be manufactured as a bespoke product match the design scheme.

Fixing and installation

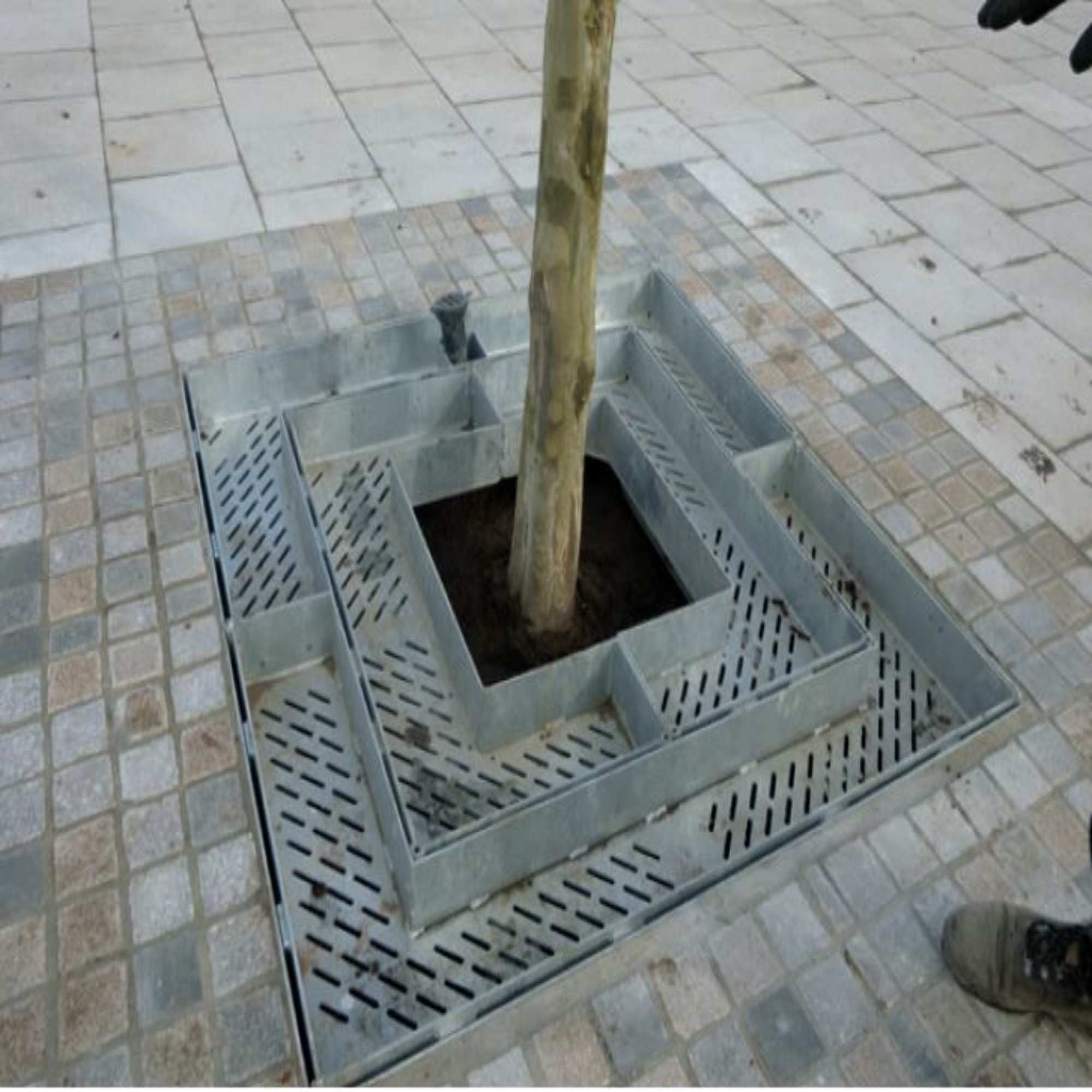

  • The two halves of the outer frame are bolted together and fixed directly to a level concrete pad foundation around the tree pit. To avoid trip-hazard set pad foundation so that grille is flush with finished paving level (ragged legs can be added if required).

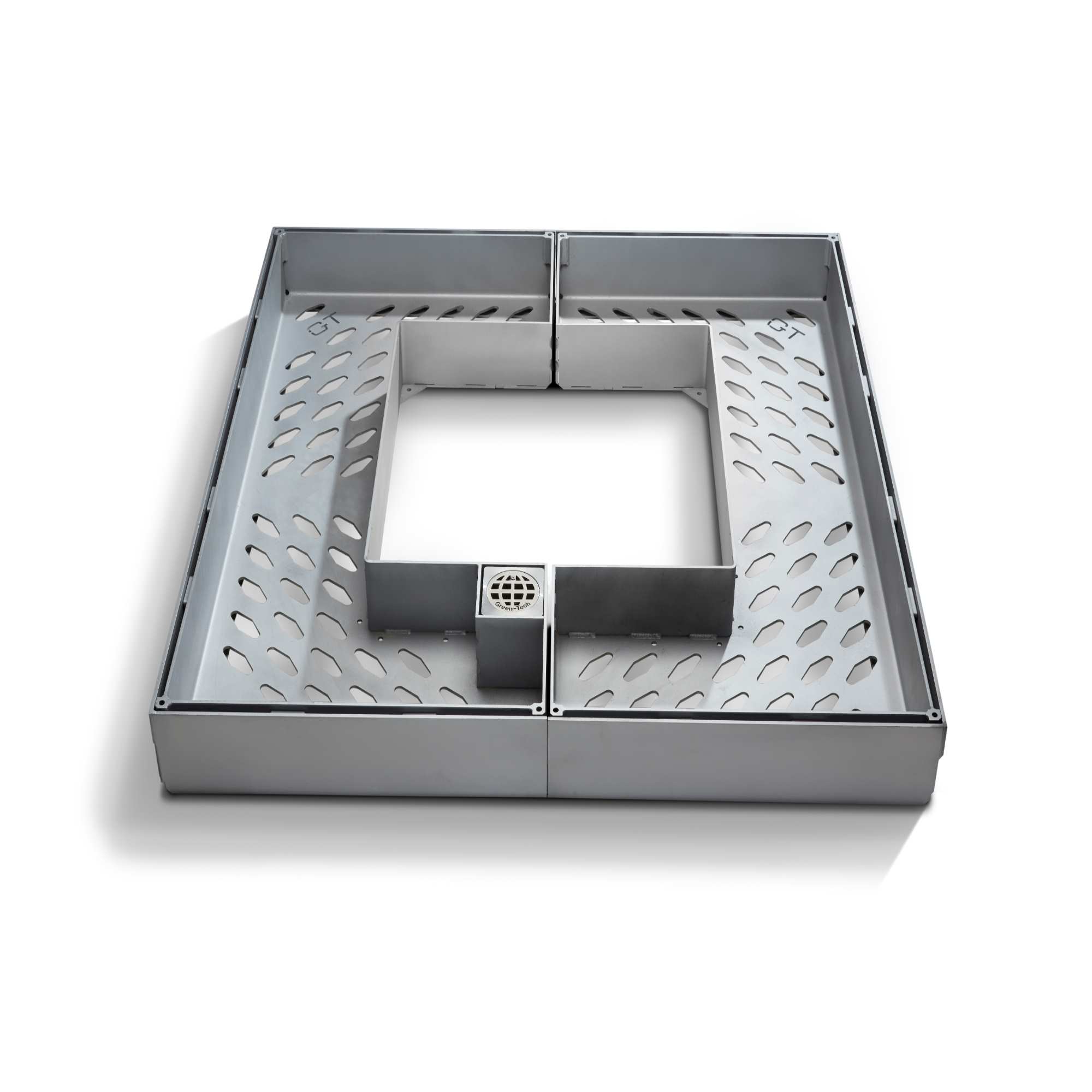

  • The inner trays can then be installed and fastened into place using the fixing fillets, through-fixed to a captive nut in the outer frame braces.
  • These fillets can then be used as lifting brackets if the inner tray needs removing at a later date.
  • Outer frame can be supplied toe in or toe out depending on site needs, although toe out is a better structural unit.
    • Finish: Standard Hot Dip Galvanised. Can also be powder coated in any RAL or BS colour. Optional Finish: Can be manufactured in stainless steel with any grade of finish. Size: Can be manufactured in any size to suit the paving scheme/pattern. Tree Guard: Normally not required with this design, but a guard can be manufactured as a bespoke product match the design scheme.
