Tree Anchor Rootball Wire Fixing System
The gt Tree Anchor Rootball Wire Fixing System Kit is the ideal solution for underground securing of newly planted saplings, rootballed and containerised trees. The kit has been assembled to provide the best possible start for the new planting, delivering security, safety and peace of mind for the installer. The kits are available in 5 sizes to suit tree sizes from light standard to semi mature. They are simple to install offering precise positioning for the anchor points, with high strength tensile wires that incorporate rootball protectors spreading the load and preventing damage to the tree’s rooting structure.
The gt Tree Anchor Rootball Wire Fixing System Kit is the ideal solution for underground securing of newly planted saplings, rootballed and containerised trees. The kit has been assembled to provide the best possible start for the new planting, delivering security, safety and peace of mind for the installer. The kits are available in 5 sizes to suit tree sizes from light standard to semi mature. They are simple to install offering precise positioning for the anchor points, with high strength tensile wires that incorporate rootball protectors spreading the load and preventing damage to the tree’s rooting structure.

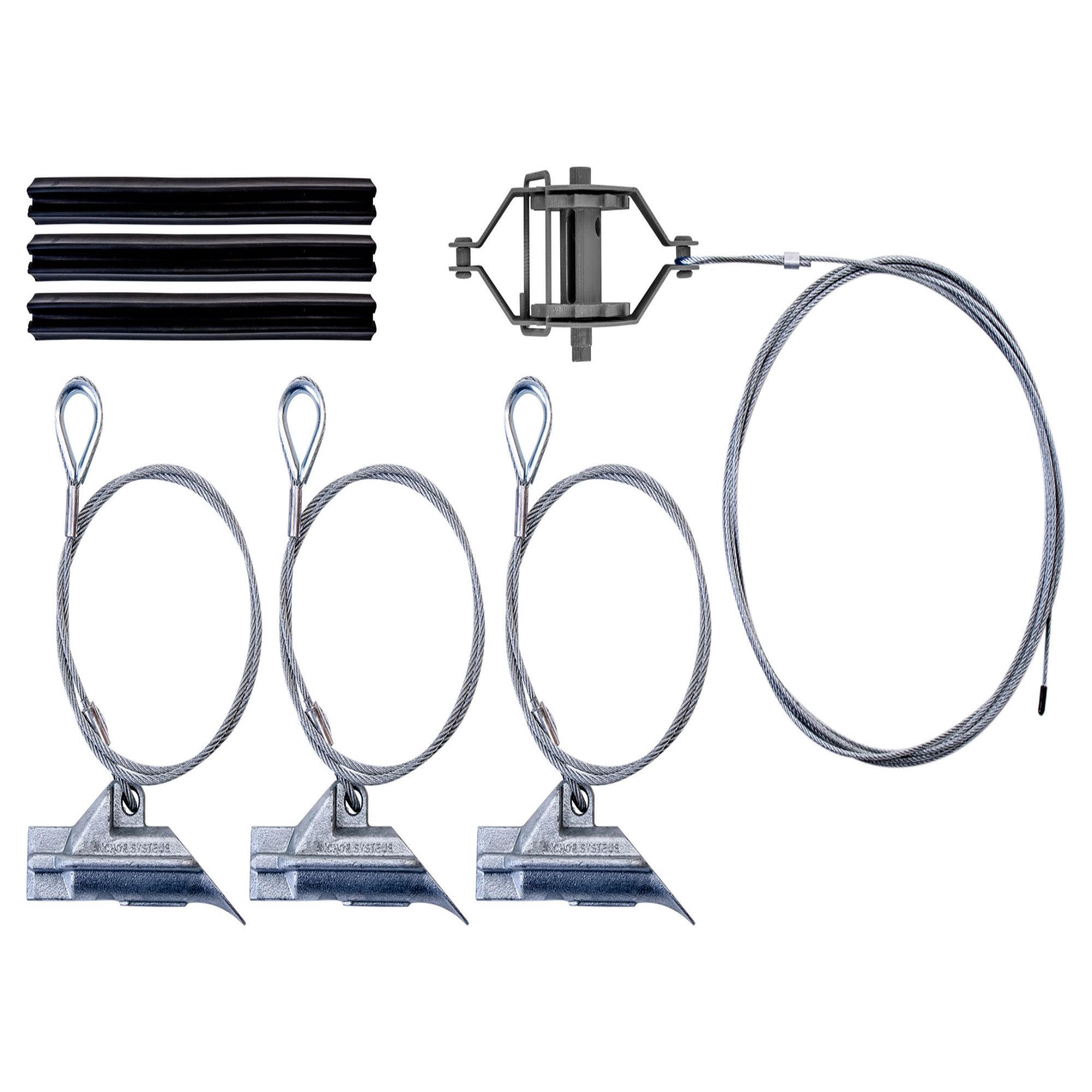

Tree Anchor Rootball Wire Fixing System Kit Components
|
Anchor System Ref: |
Kit Components |
Suitable For Trees |
|
GTRBK1W |
3 x SG Galvanised Anchors, 2m of Galvanised wire, 1 x Galvanised Ratchet Tensioner, Rubber Rootball Protectors |
2.5m Height, 12cm Circumference |
|
GTRBK5W |
3 x SG Galvanised Anchors, 4m of Galvanised Wire, 1 x Galvanised Ratchet Tensioner, Rubber Rootball Protector |
2.5 – 4.5m Height, 12cm – 25cm Circumference |
|
GTRBK10W |
3 x SG Galvanised Anchors, 5m of Galvanised Wire, 1 x Galvanised Ratchet Tensioner, Rubber Rootball Protector |
4.5m – 7.5m Height, 25cm – 45cm Circumference |
|
GTRBK20W |
3 x SG Galvanised Anchors, 8m of Galvanised Wire, 1 x Galvanised Ratchet Tensioner, Rubber Rootball Protector |
7.5m – 12m Height, 45cm – 75cm Circumference |
|
GTRBK90W |
3 x SG Galvanised Anchors, 12m of Galvanised Wire, 1 x Galvanised Ratchet Tensioner, Rubber Rootball Protector |
12m+ Height, 75cm+ Circumference |
Tools Required to Install Rootball Wire Fixing Tree Anchor System Correctly
|
Anchoring kit |
Tools |
GTRT1 |
GTRT2 |
GTHDR01 |
GTHDR05or GTPDR5 |
GTHDR10or GTPDR10 |
GTPDR20 |
GTR32-R32SH |
GTHRR |
GTAH1 |
GTALJ1 |
GTALJ2 |
|
GTRBK1W |
YES | YES |
YES |
YES |
||||||||
|
GTRBK5W |
YES |
YES |
YES |
YES |
||||||||
|
GTRBK10W |
YES |
YES |
YES |
YES |
YES |
YES |
||||||
|
GTRBK20W |
YES |
YES |
YES |
YES |
YES |
|||||||
|
GTRBK90W |
YES |
YES |
YES |
YES |
YES |
