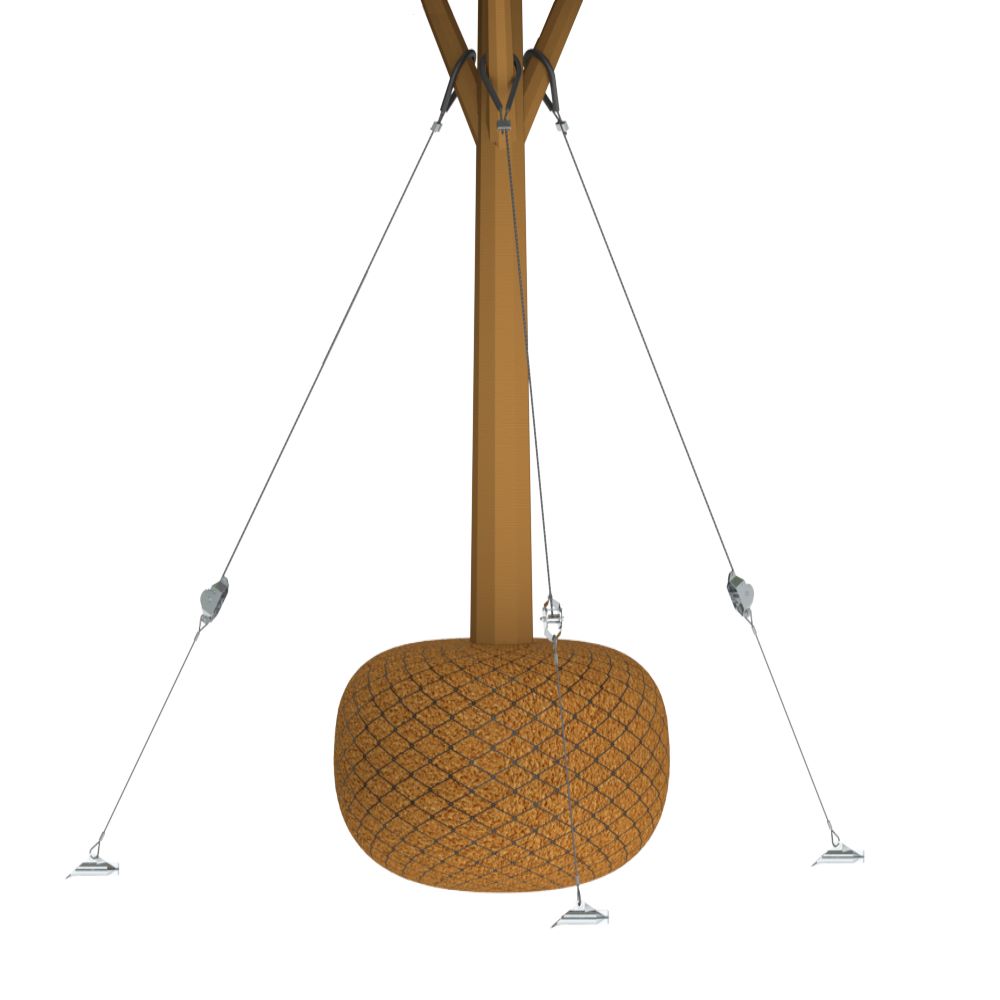

Guying Tree Anchor Fixing System

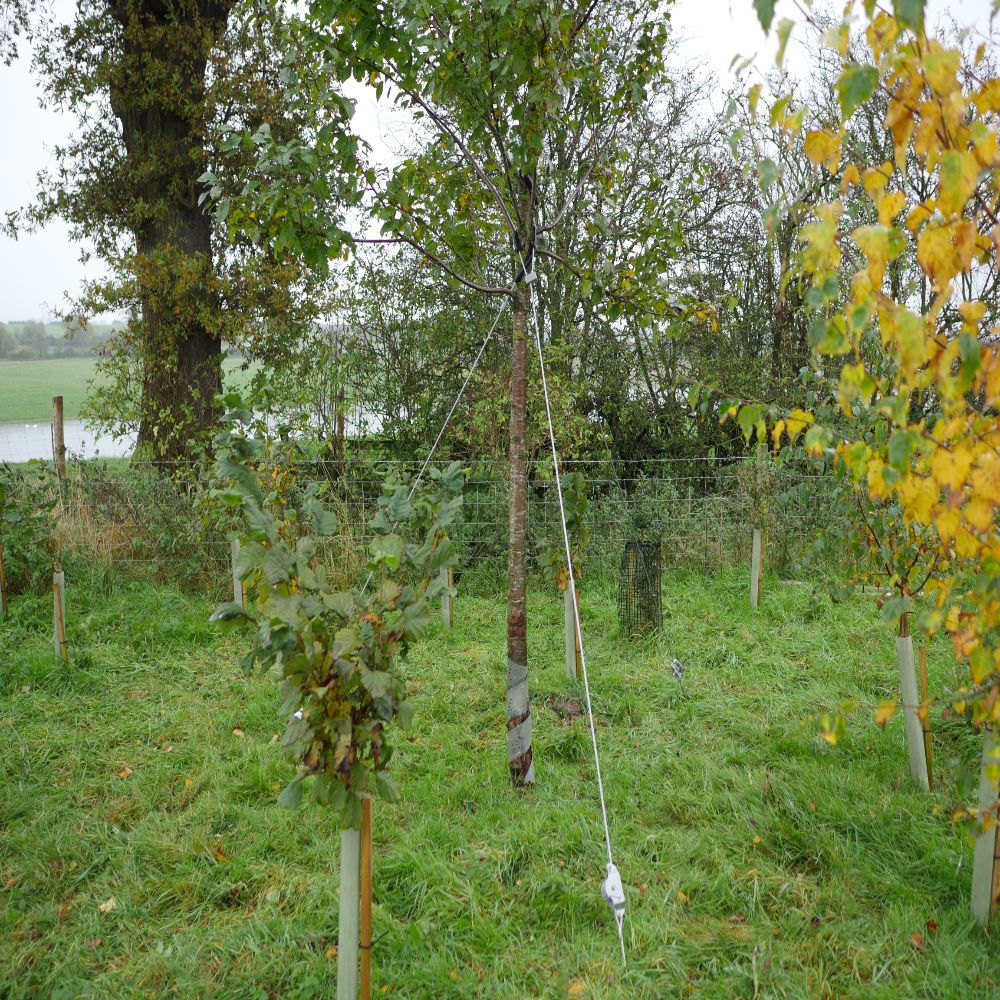

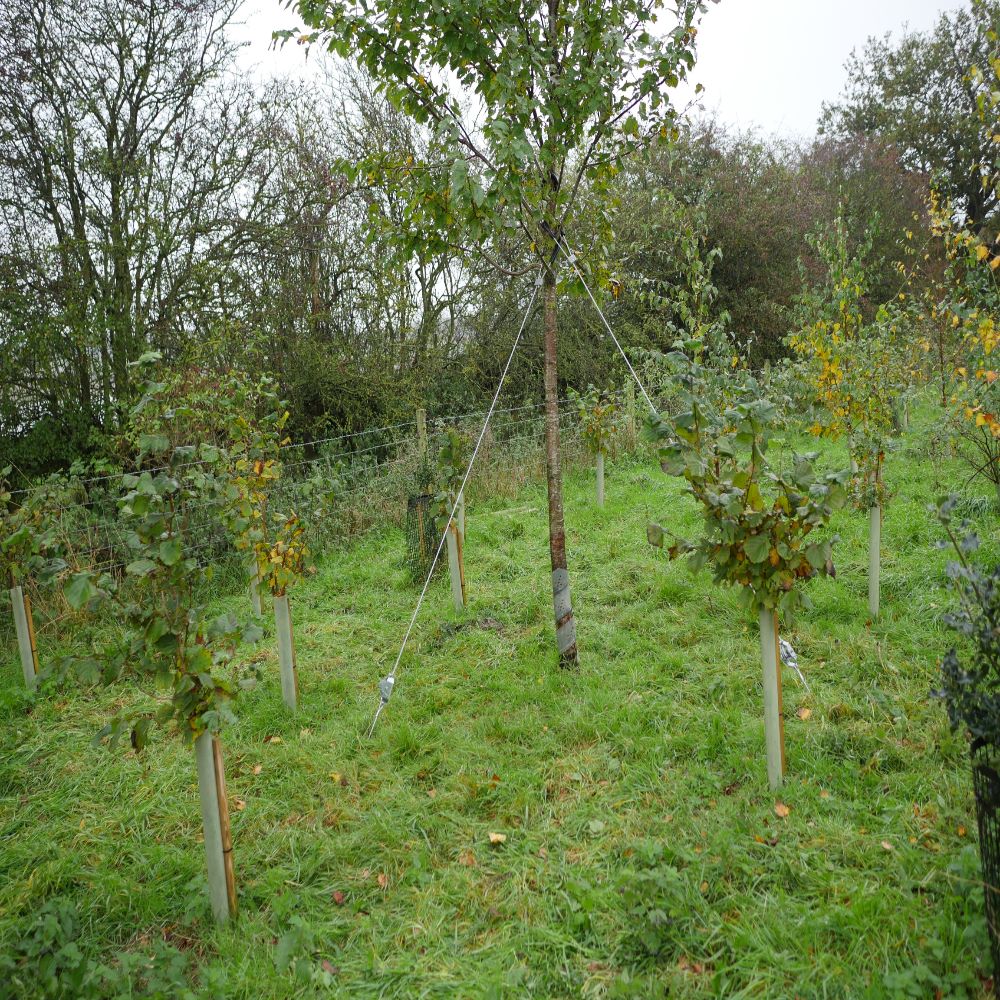

Developed for use with newly planted trees that are subject to wind in exposed areas. The guying kit acts as an anchor and support to prevent the tree from leaning or becoming displaced. The simplicity of the guying kits reduces overall installation time plus creates anchor points that enable better establishment. The guying kit can be used in a variety of ground conditions to suit your project requirements.
Developed for use with newly planted trees that are subject to wind in exposed areas. The guying kit acts as an anchor and support to prevent the tree from leaning or becoming displaced. The simplicity of the guying kits reduces overall installation time plus creates anchor points that enable better establishment. The guying kit can be used in a variety of ground conditions to suit your project requirements.
|
Anchor System Ref: |
Kit Components |
Suitable For Trees |
|
GTOHG5 |
3 x Galvanised Anchors attached to Ratchet Tensioners, 3 x Wire Clips, Collars and Wire Assemblies (6m), 3 x Ratchet Shrouds |
2.5m – 4.5m Height 12cm– 25cm Circumference |
|
GTOHG10 |
3 x Galvanised Anchors attached to Ratchet Tensioners, 3 x Wire Clips, Collars and Wire Assemblies (8m), 3 x Ratchet Shrouds |
4.5m – 7.5m Height 25cm – 45cm Circumference |
|
GTOHG20 |
3 x Galvanised Anchors attached to Ratchet Tensioners, 3 x Wire Clips, Collars and Wire Assemblies (12m), 3 x Ratchet Shrouds |
7.5m – 12m Height 45cm – 75cm Circumference |
|
GTOHG90 |
3 x Galvanised Anchors attached to Ratchet Tensioners, 3 x Wire Clips, Collars and Wire Assemblies (12m), 3 x Ratchet Shrouds |
12m + Height 75+cm circumference |
Tools Required to Install the Guy Tree Anchor Systems correctly
|
Anchoring kit |
Tools |
GTRT1 |
GTRT2 |
GTHDR01 |
GTHDR05or GTPDR5 |
GTHDR10or GTPDR10 |
GTPDR20 |
GTR32-R32SH |
GTHRR |
GTAH1 |
GTALJ1 |
GTALJ2 |
|
GTOHG5 |
YES |
YES |
YES |
YES |
||||||||
|
GTOHG10 |
YES |
YES |
YES |
YES |
YES |
YES |
||||||
|
GTOHG20 |
YES |
YES |
YES |
YES |
YES |
YES |
||||||
|
GTOHG90 |
YES |
YES |
YES |
YES |
YES |
