Rite-L-Edge - Hard Landscape Edging
There are many applications where Rite-L-Edge - Hard Landscape Edging should be used instead of Rite-Edge lawn and border edging, but the general rule of thumb is that if the surface to be edged requires any form of mechanical compaction then the most suitable depth of Rite-L-Edge should be used. The Rite-L-Edge - Hard Landscape Aluminium edging system has been designed with both the landscape architect and installer in mind, with its L shape design section for additional strength it is easy to install and lasts a lifetime. The product is suitable for all hard landscaping projects and can be used in conjunction with asphalt, paving slabs, block paving, resin bonded, concrete and loose gravel surfaces. Suitable for use in public and private areas including playgrounds, parks and surrounding areas to landscapes and buildings. Metal edgings are rapidly becoming the preferred choice over the more traditional edging systems such as concrete kerbs, due to the cleaner and more pleasing lines and curves that can be achieved. Rite L Edge is manufactured from durable aluminium alloy which makes the product strong yet incredibly versatile and flexible and is now the first choice in metal landscape edgings for specifiers and contractors owing to the speed of installation and high retaining properties. Rite L Edge is available in a variety of different depths from 18mm- 150mm with each length measuring 2.4m so is versatile for any hard landscaping project. Joining of the lengths is very quick and simple as connectors are supplied which simply slide into the back of the upright L shape giving a flush joint. The product will need to be secured into the ground by use of extra strong steel fixing pins which are sold separately, we generally recommend 30cm spacing for compacted surfaces and 50cm for non-compacted surfaces.
There are many applications where Rite-L-Edge - Hard Landscape Edging should be used instead of Rite-Edge lawn and border edging, but the general rule of thumb is that if the surface to be edged requires any form of mechanical compaction then the most suitable depth of Rite-L-Edge should be used.

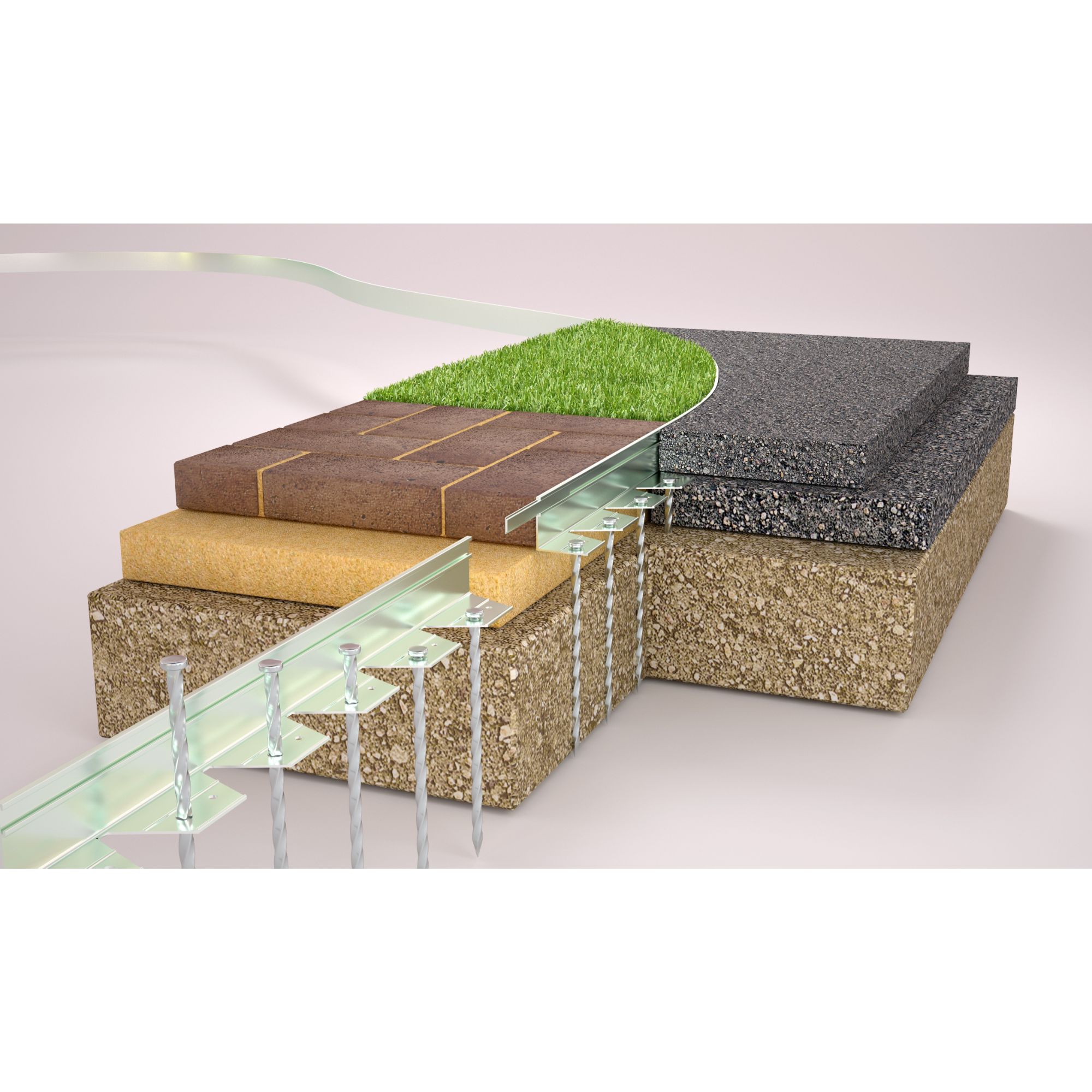

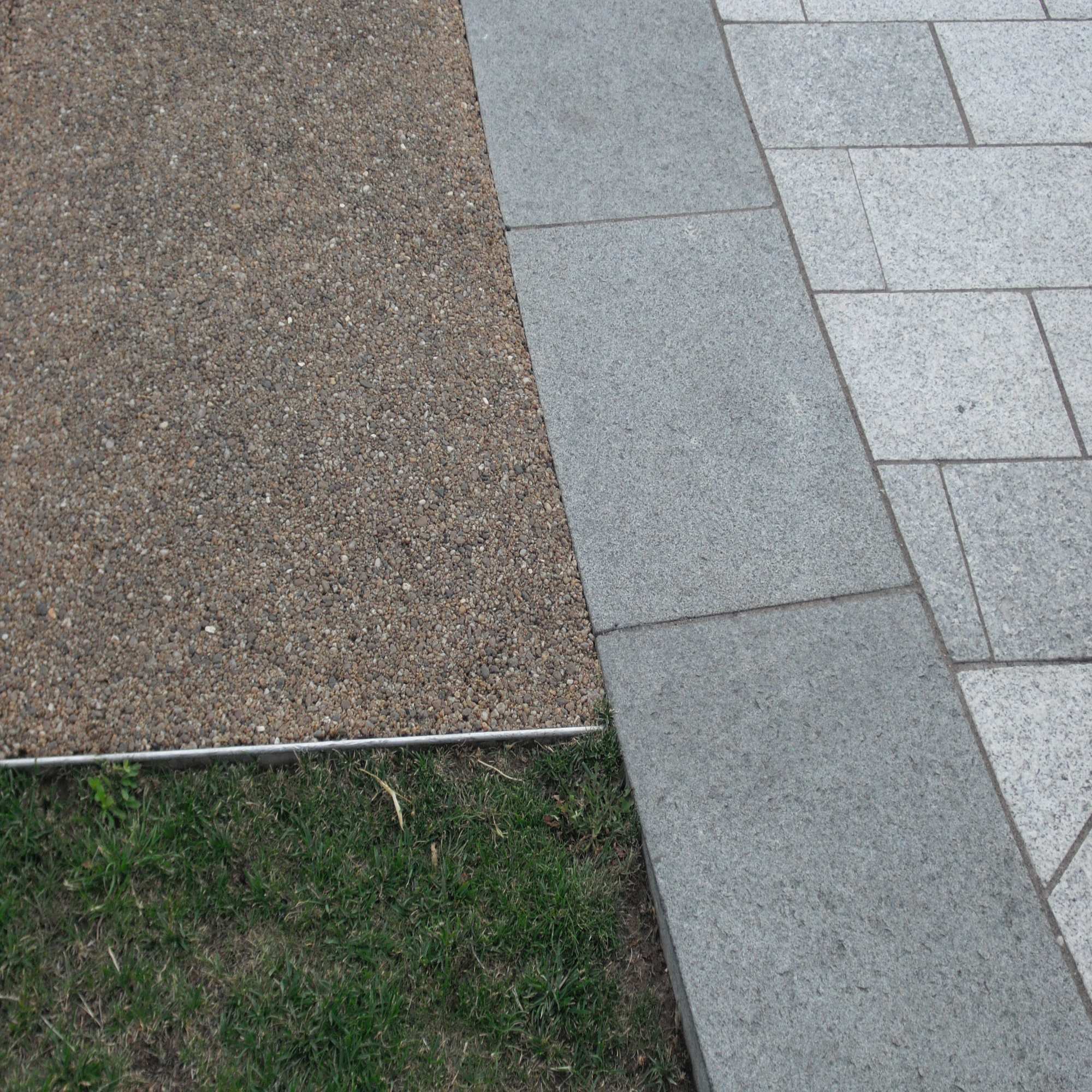

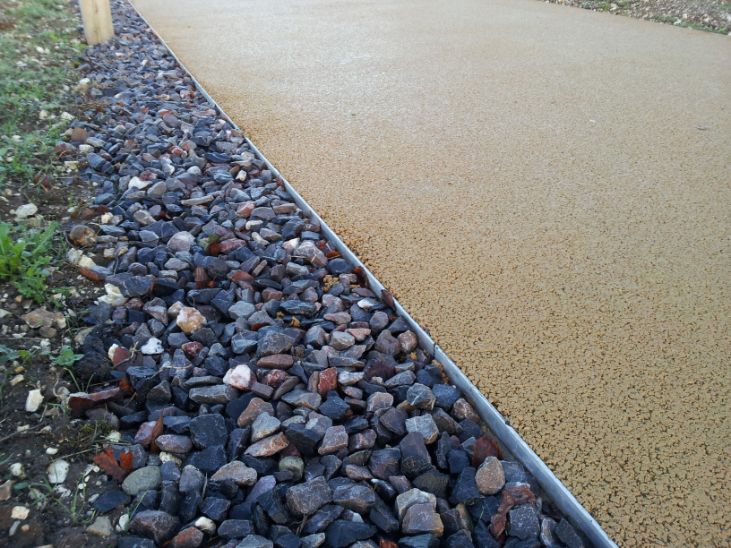

The Rite-L-Edge - Hard Landscape Aluminium edging system has been designed with both the landscape architect and installer in mind, with its L shape design section for additional strength it is easy to install and lasts a lifetime. The product is suitable for all hard landscaping projects and can be used in conjunction with asphalt, paving slabs, block paving, resin bonded, concrete and loose gravel surfaces. Suitable for use in public and private areas including playgrounds, parks and surrounding areas to landscapes and buildings.
Metal edgings are rapidly becoming the preferred choice over the more traditional edging systems such as concrete kerbs, due to the cleaner and more pleasing lines and curves that can be achieved. Rite L Edge is manufactured from durable aluminium alloy which makes the product strong yet incredibly versatile and flexible and is now the first choice in metal landscape edgings for specifiers and contractors owing to the speed of installation and high retaining properties.

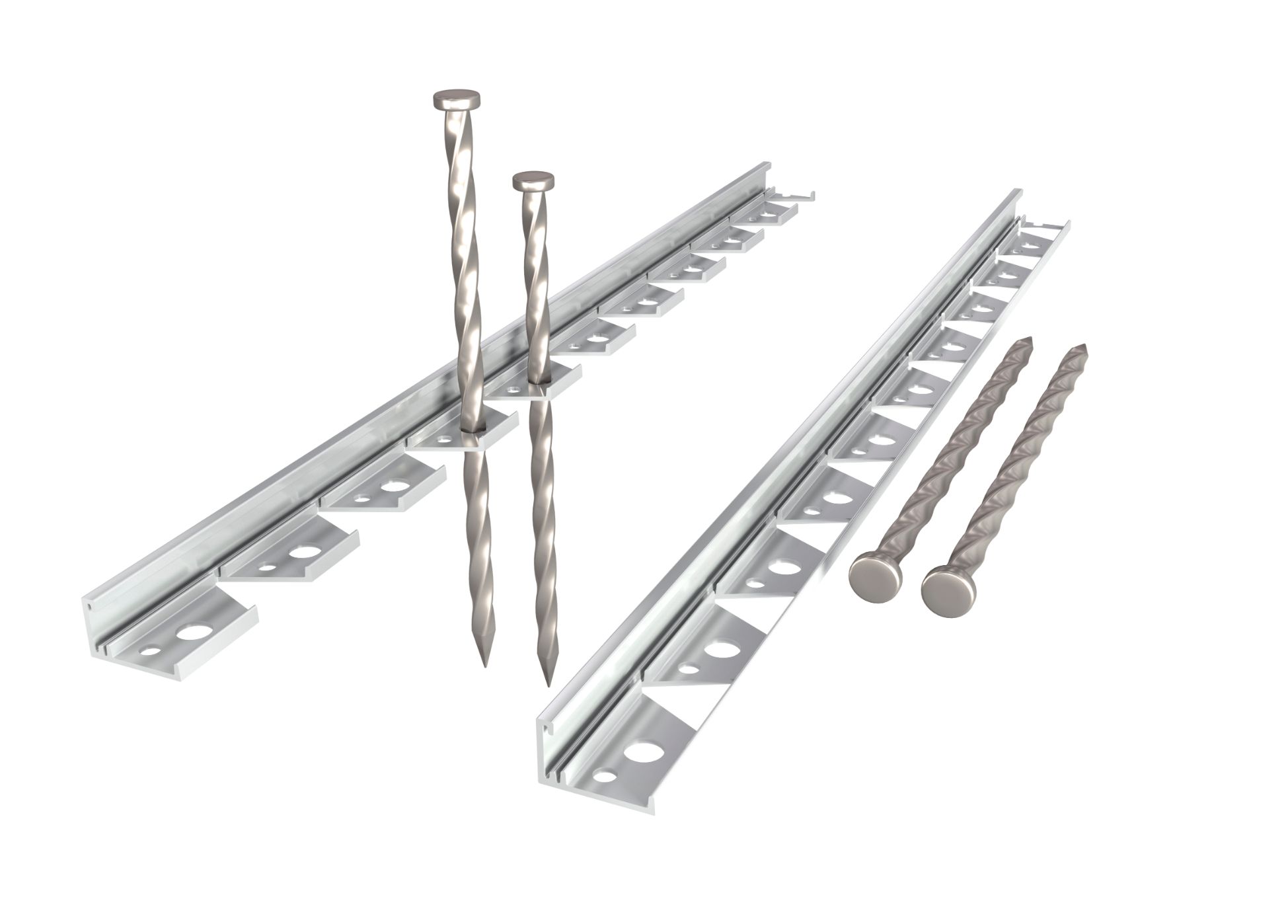

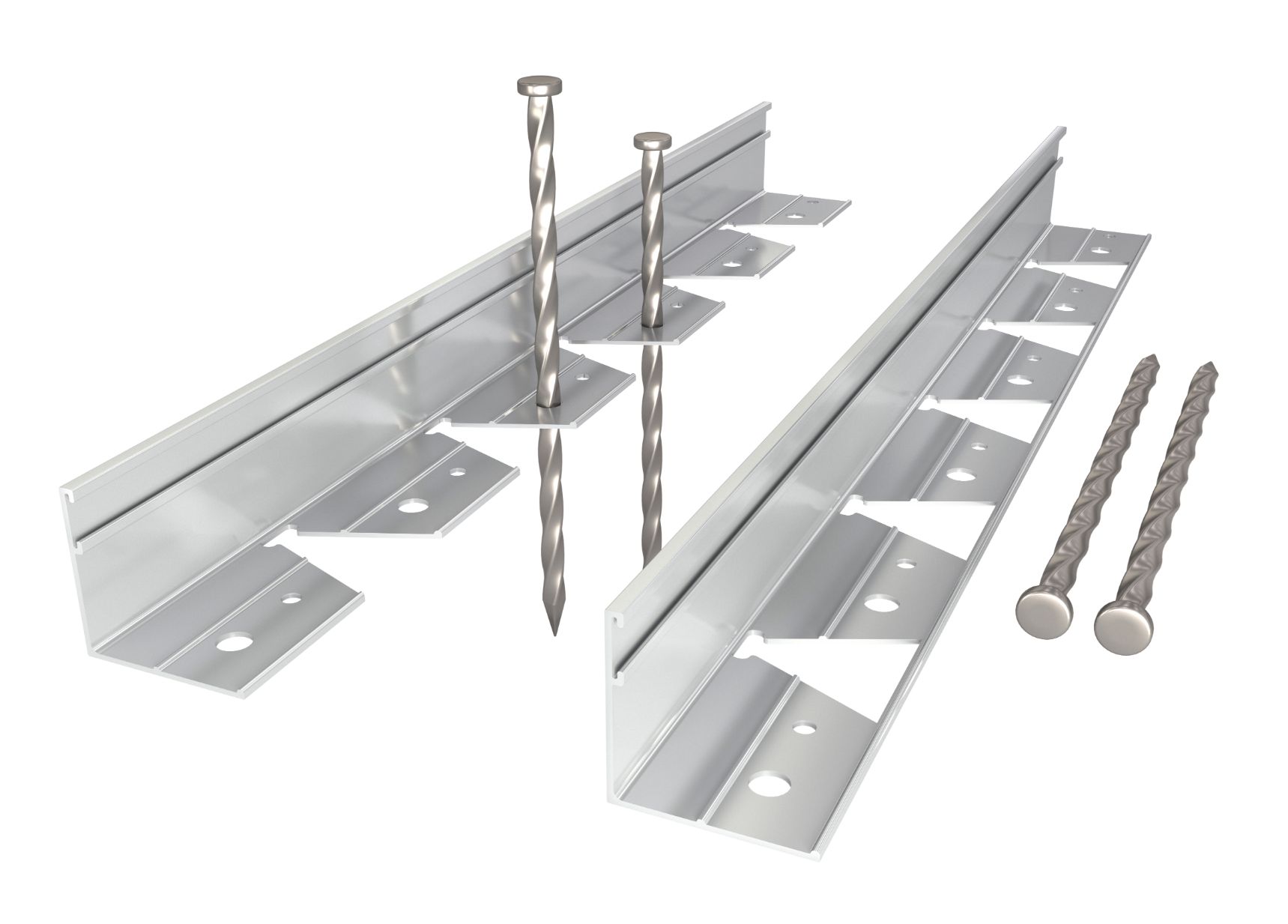

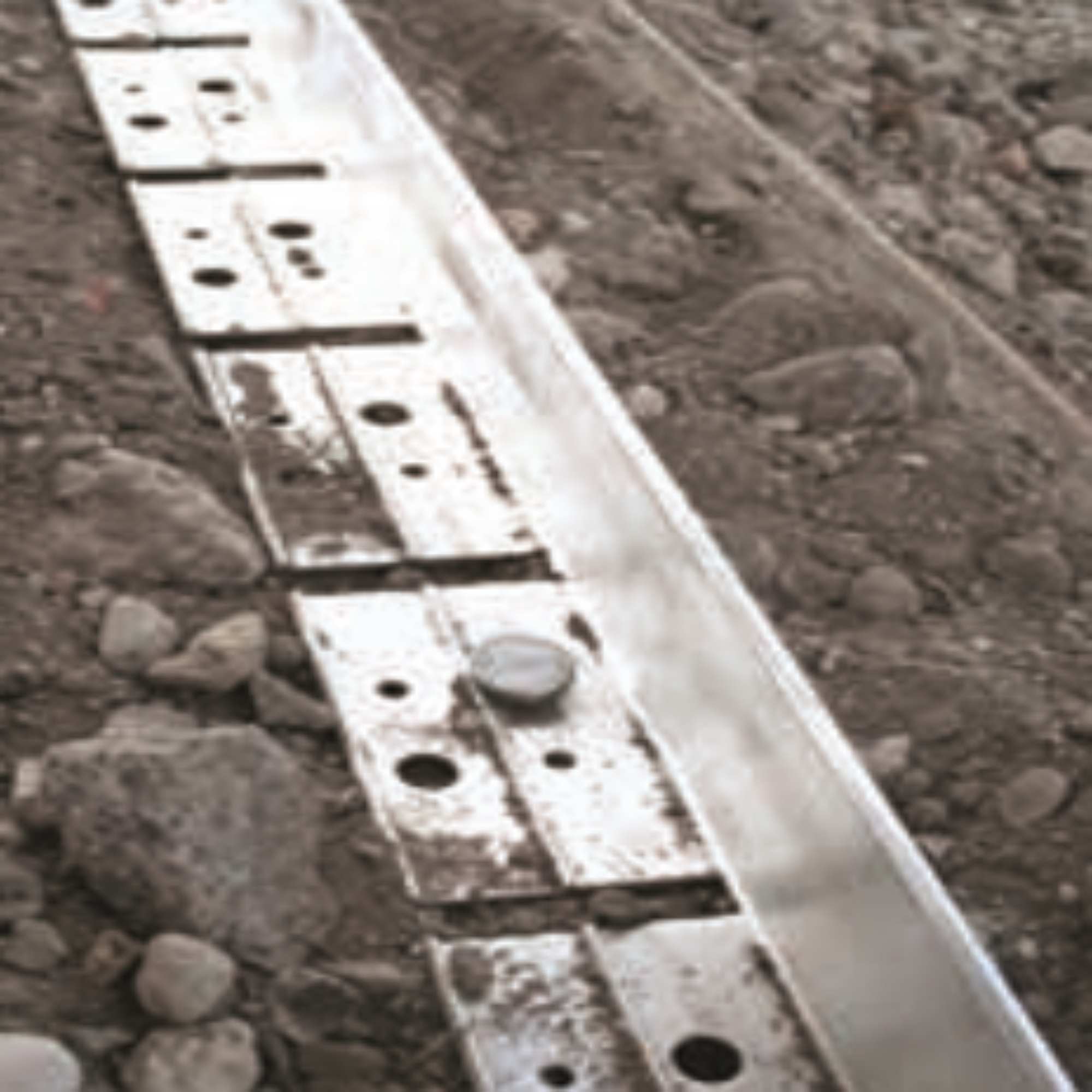

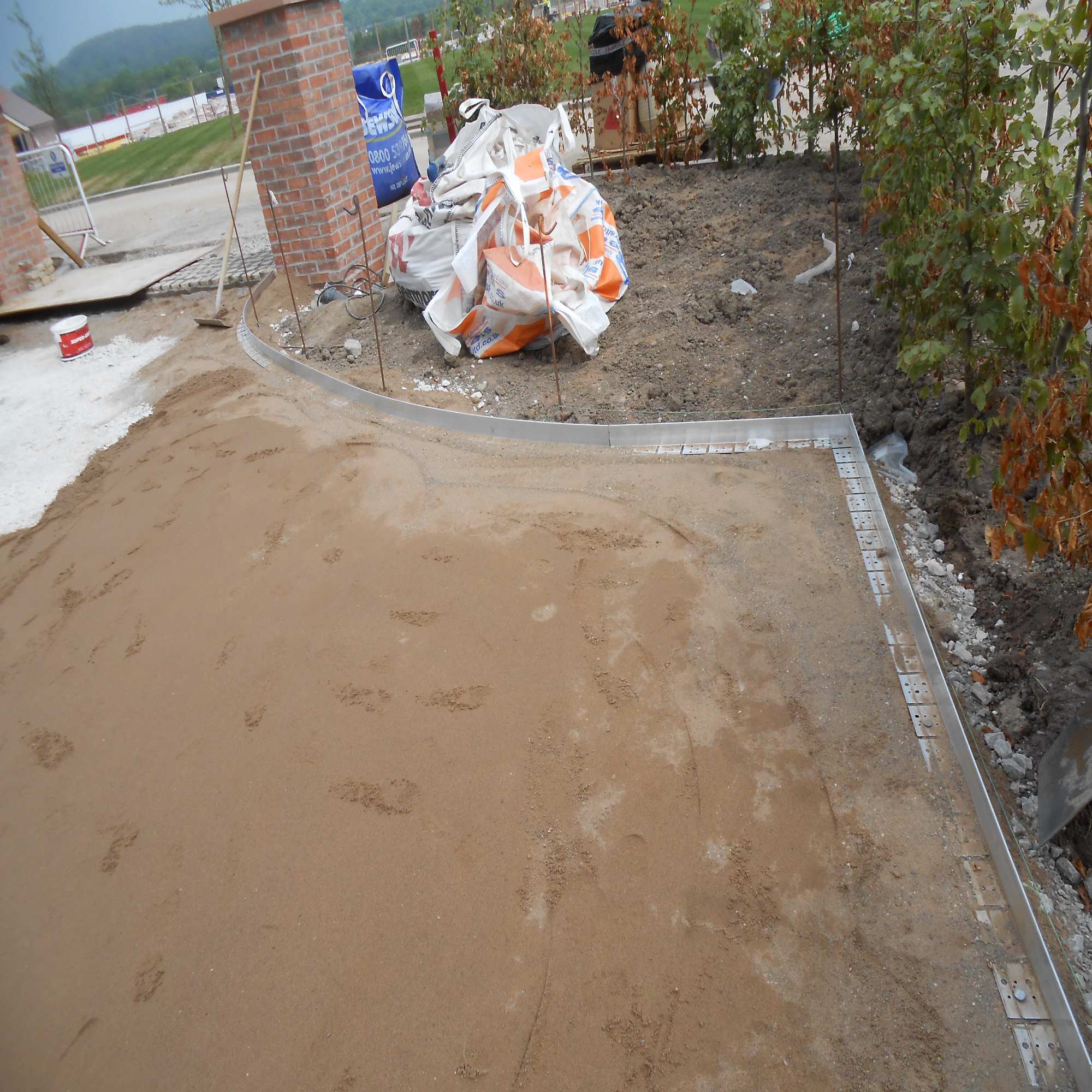

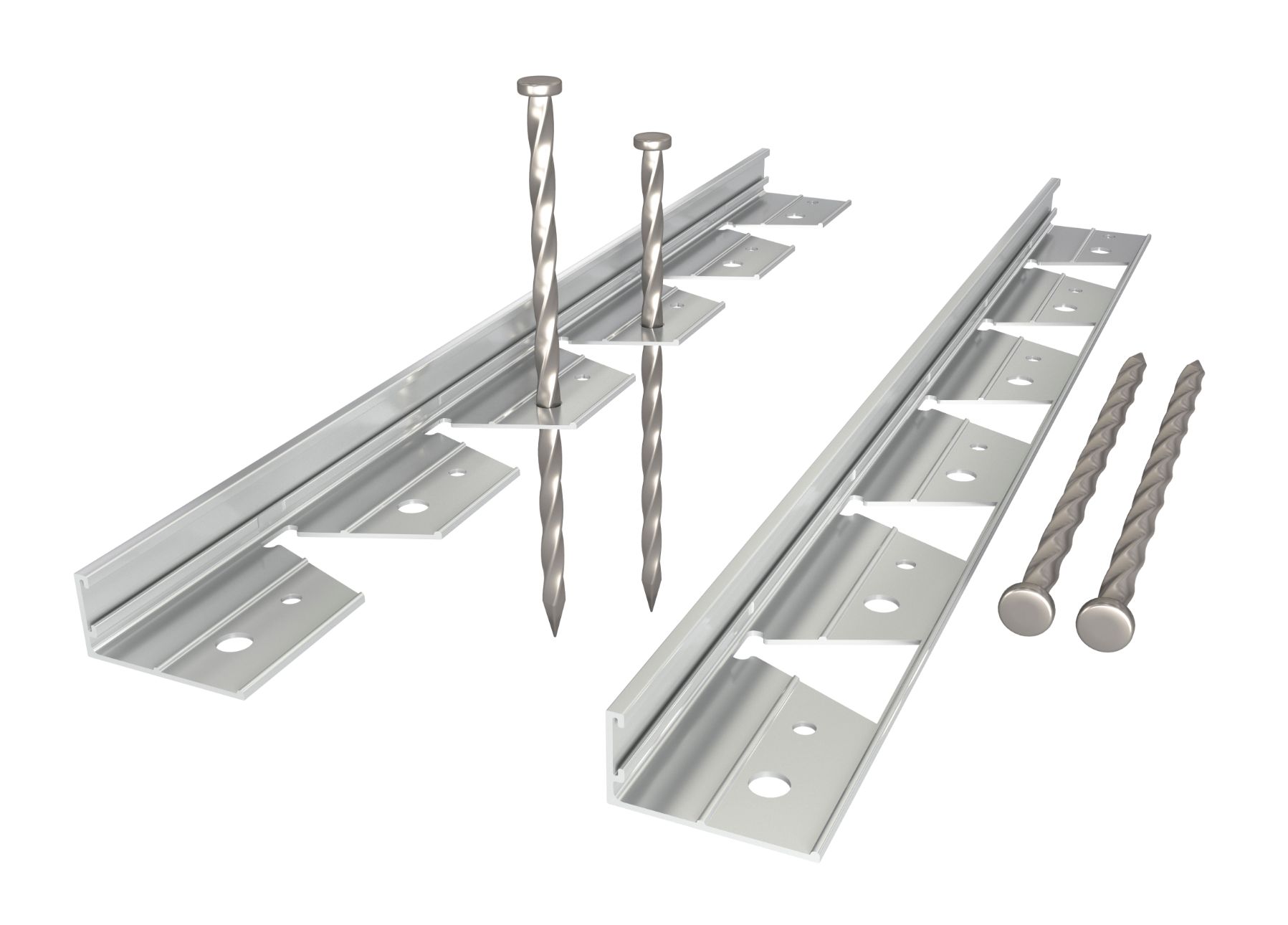

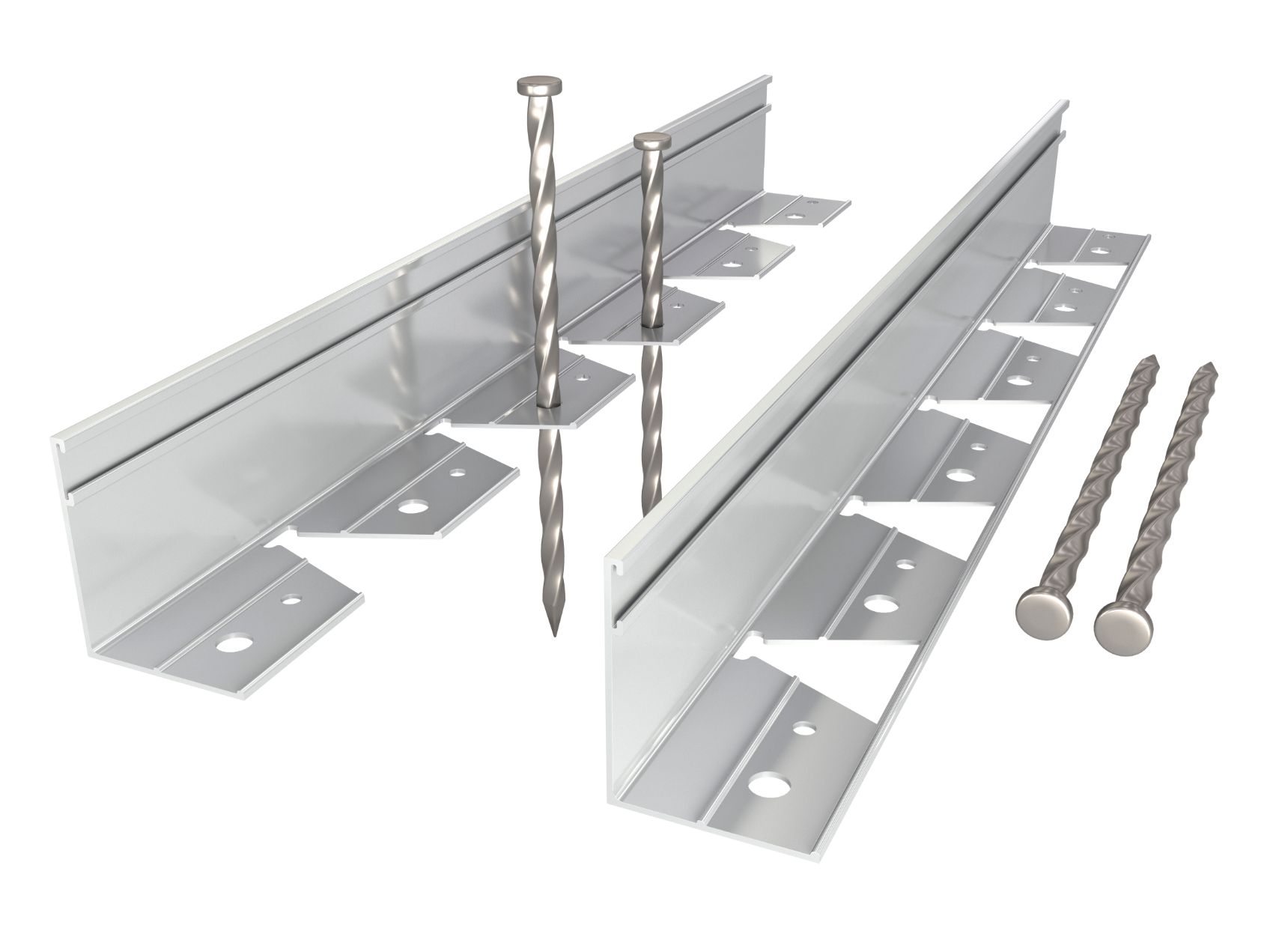

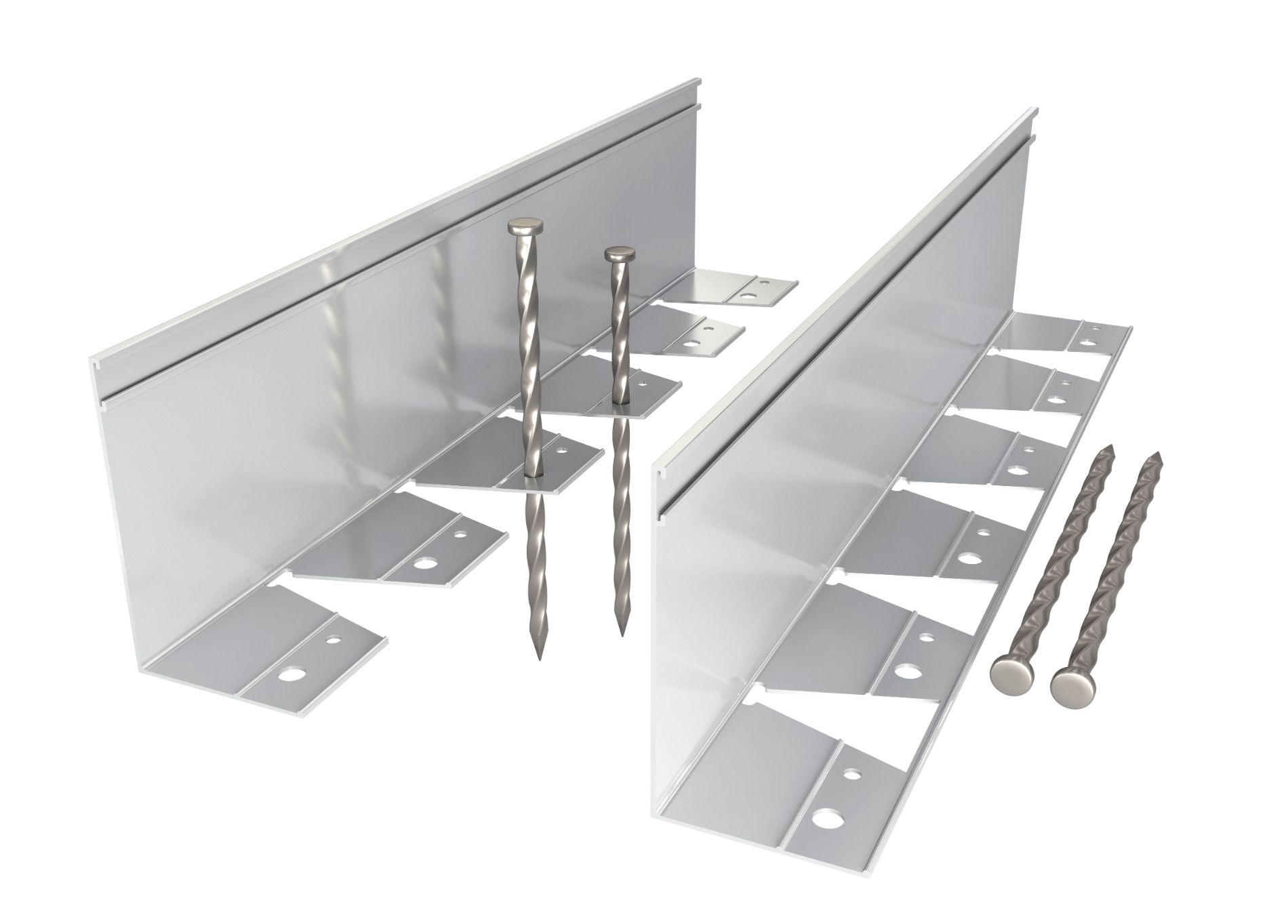

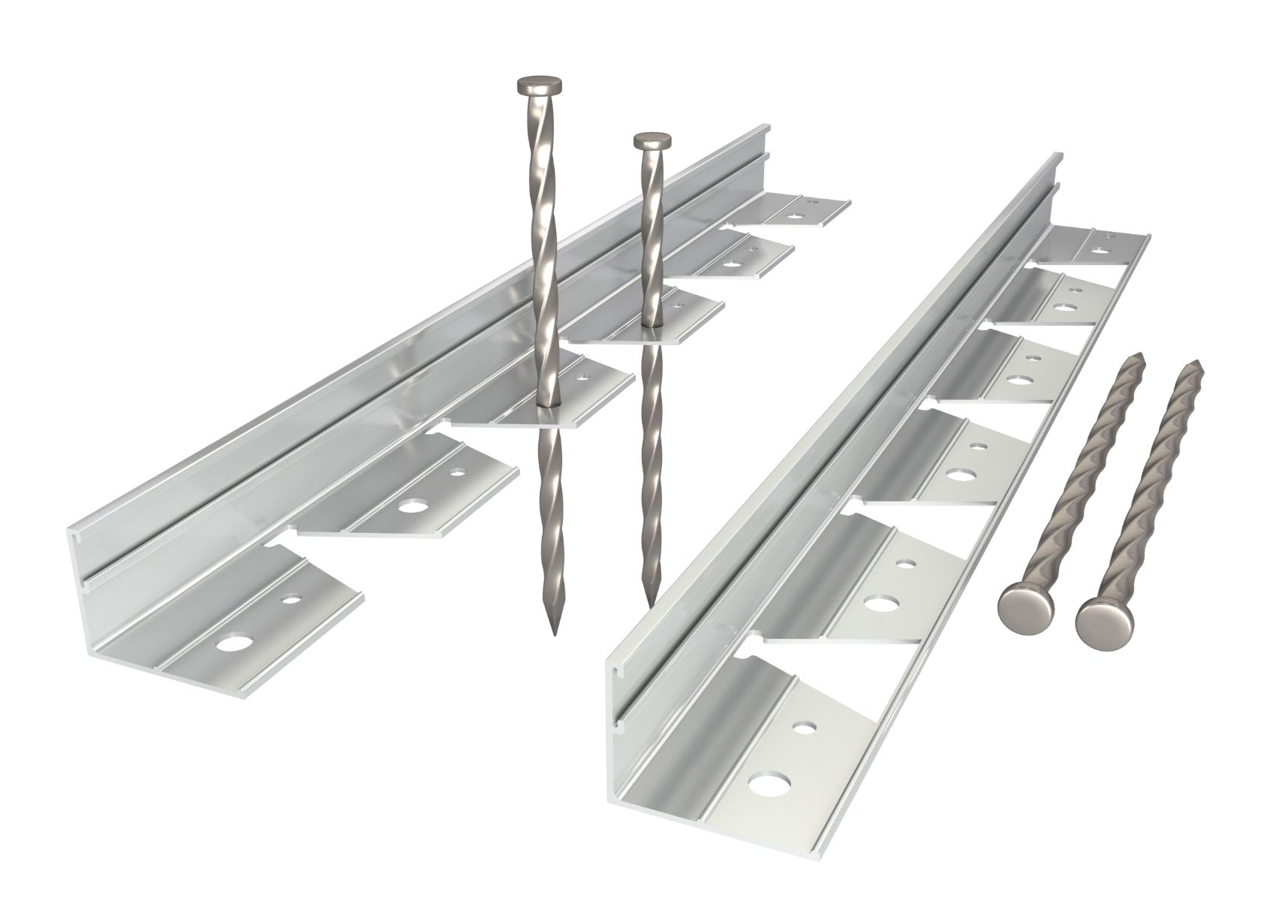

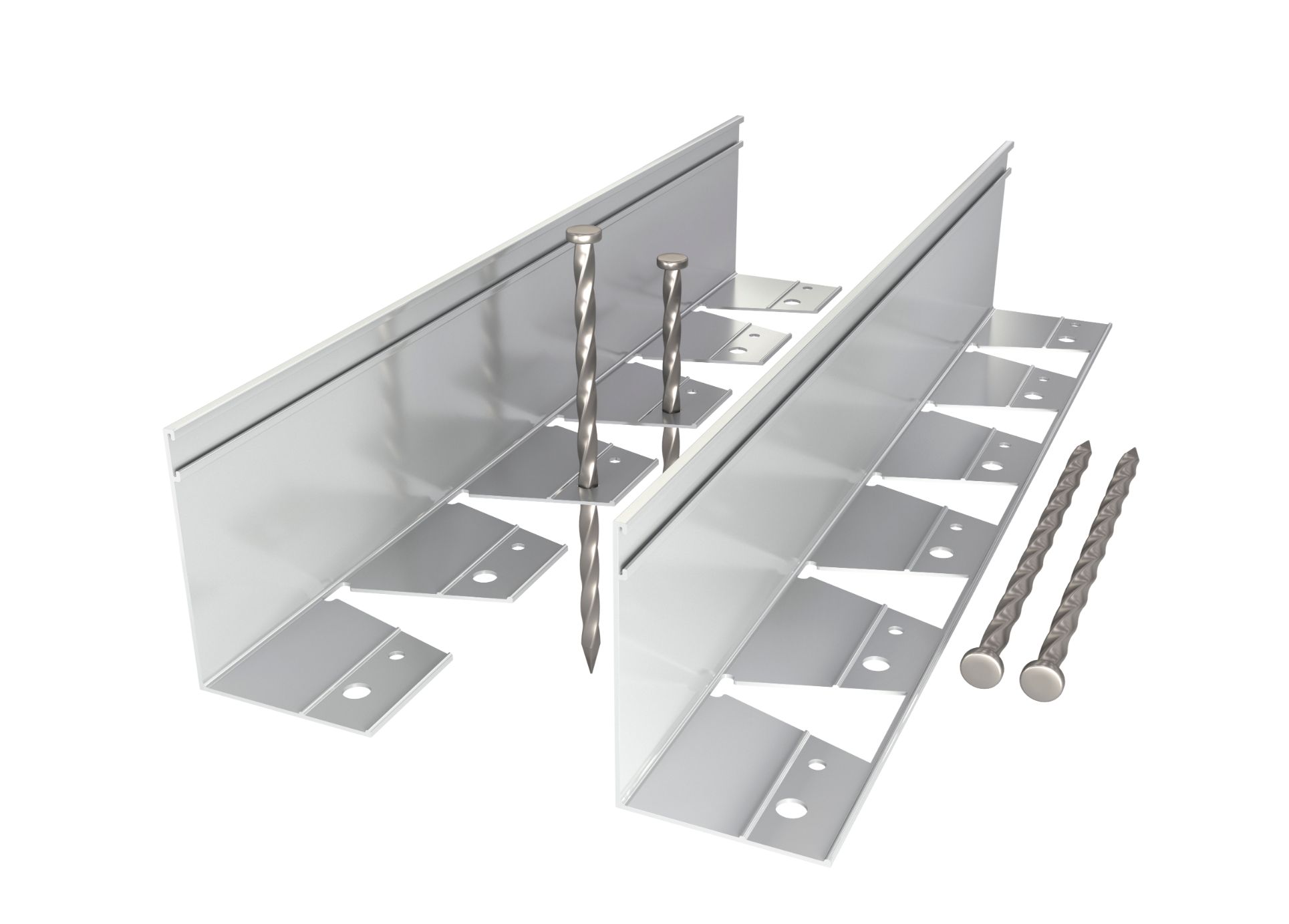

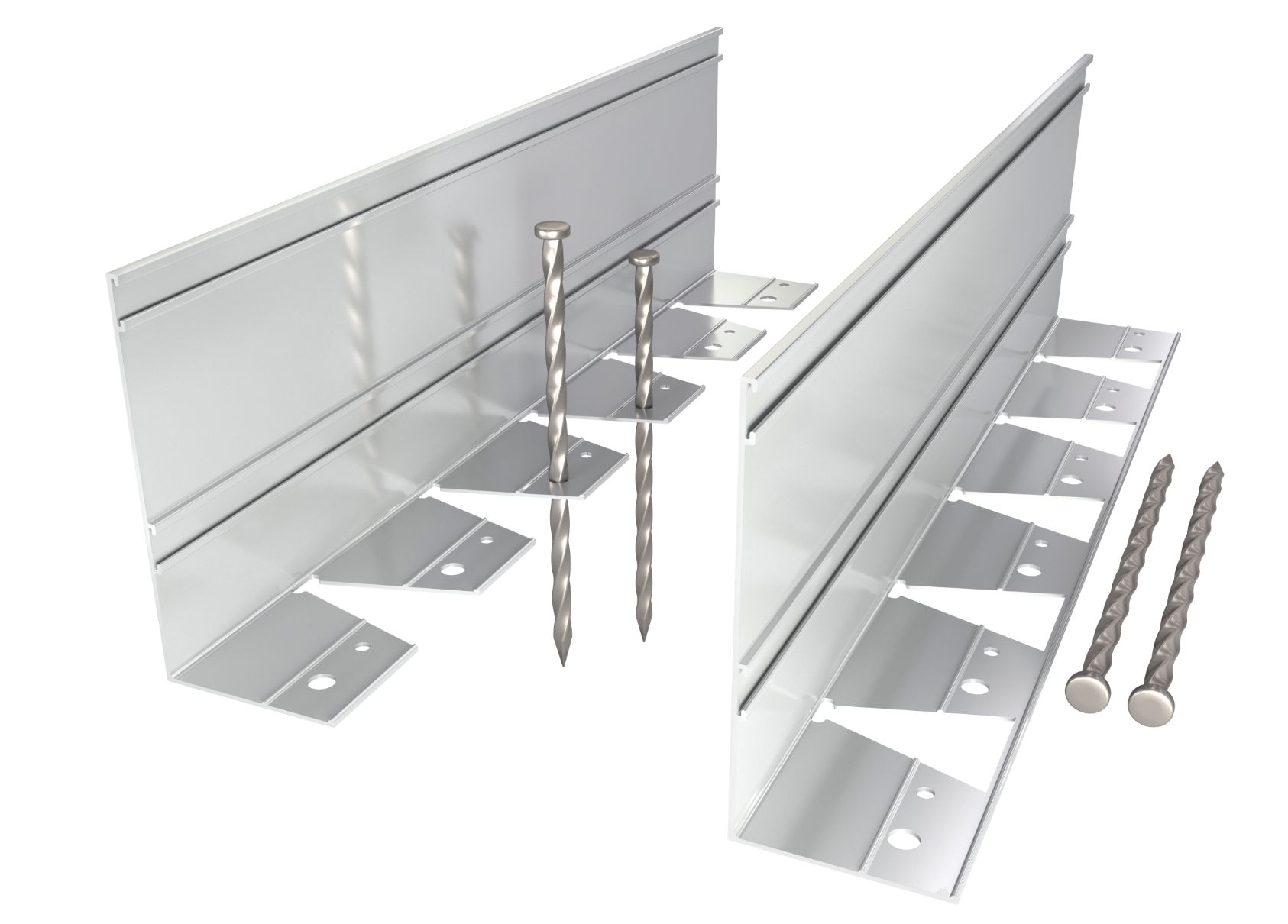

Rite L Edge is available in a variety of different depths from 18mm- 150mm with each length measuring 2.4m so is versatile for any hard landscaping project. Joining of the lengths is very quick and simple as connectors are supplied which simply slide into the back of the upright L shape giving a flush joint. The product will need to be secured into the ground by use of extra strong steel fixing pins which are sold separately, we generally recommend 30cm spacing for compacted surfaces and 50cm for non-compacted surfaces.
Rite-L-Edge - Hard Landscape Edging Benefits:
- Manufactured from durable extruded aluminium alloy
- Will not rust
- Quick and easy installation
- Creates pleasing lines and curves
- Maintains a clean crisp defined edge
- Available in different depths
- Extra strong steel fixing pins
- ‘L’ shaped section for added strength
- Strong but flexible and versatile with high retaining properties
Rite-L-Edge - Hard Landscape Edging Applications:
- Tarmac Drives and Pathways

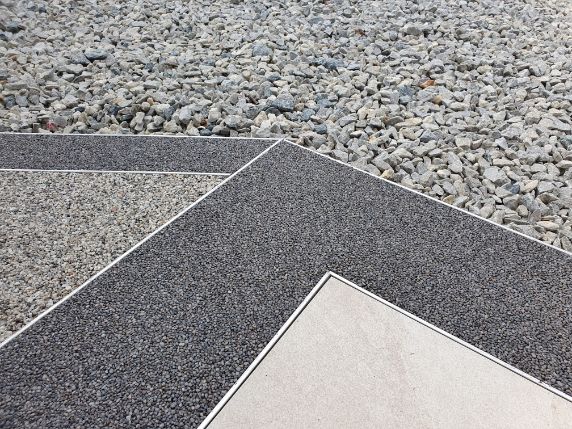

- Resin Bound and Bonded Aggregate Surfaces
- Permeable Paving Edging
- Rubber Safety Surfacing and Athletics Surfaces

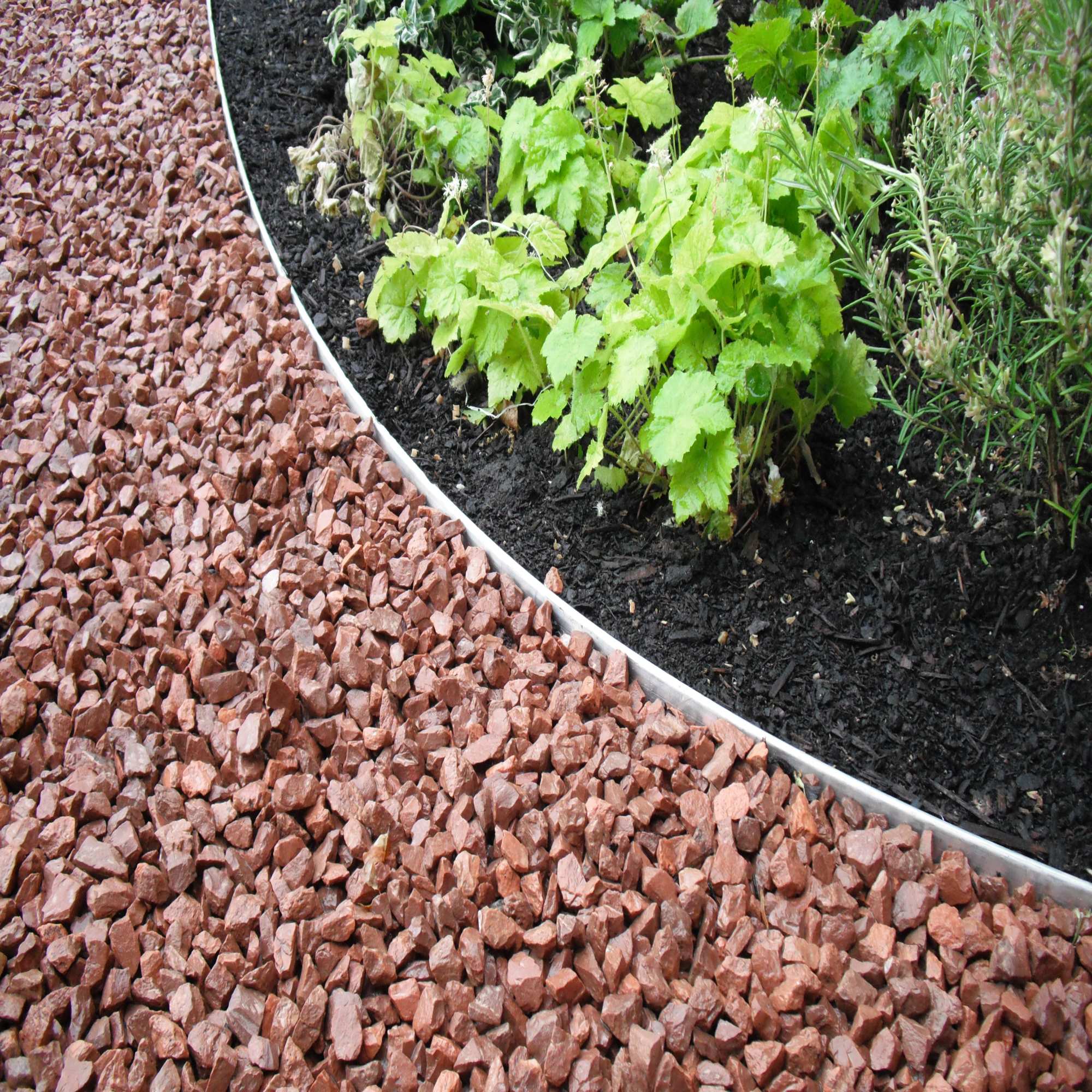

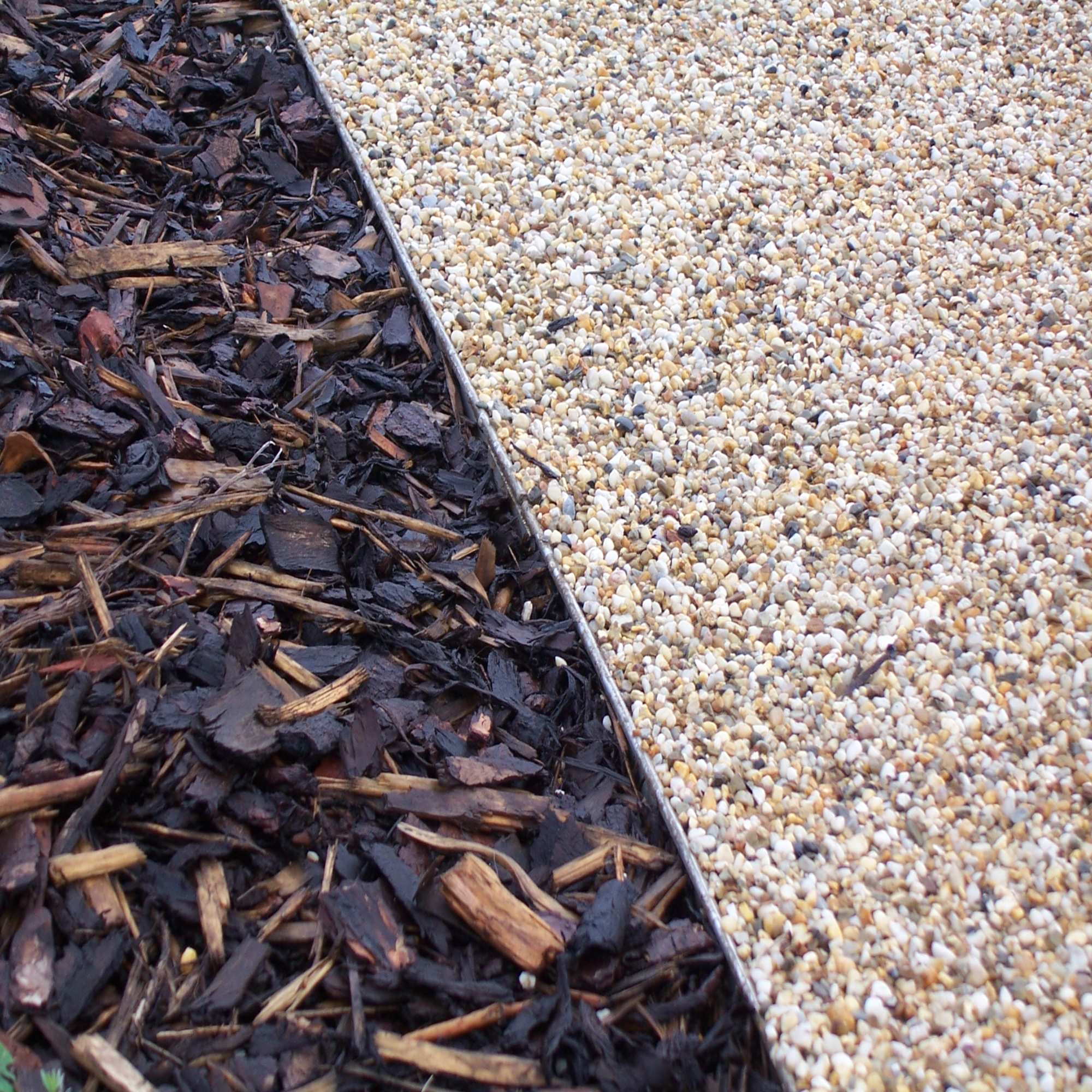

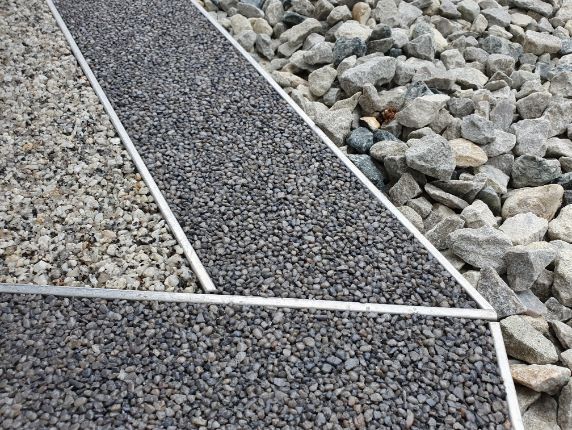

- Decorative Gravel Driveways
- Artificial Grass
- Block pavers and paving flags
Flexi Code | Non-flexi Code | Height | Base Width | Piece Length | Lengths Per Pack | Metres Per Pack |
C570 | C570NF | 18mm | 30mm | 2.4m | 30 | 72m |
C571 | C571NF | 25mm | 50mm | 2.4m | 30 | 72m |
C572 | C572NF | 38mm | 50mm | 2.4m | 20 | 48m |

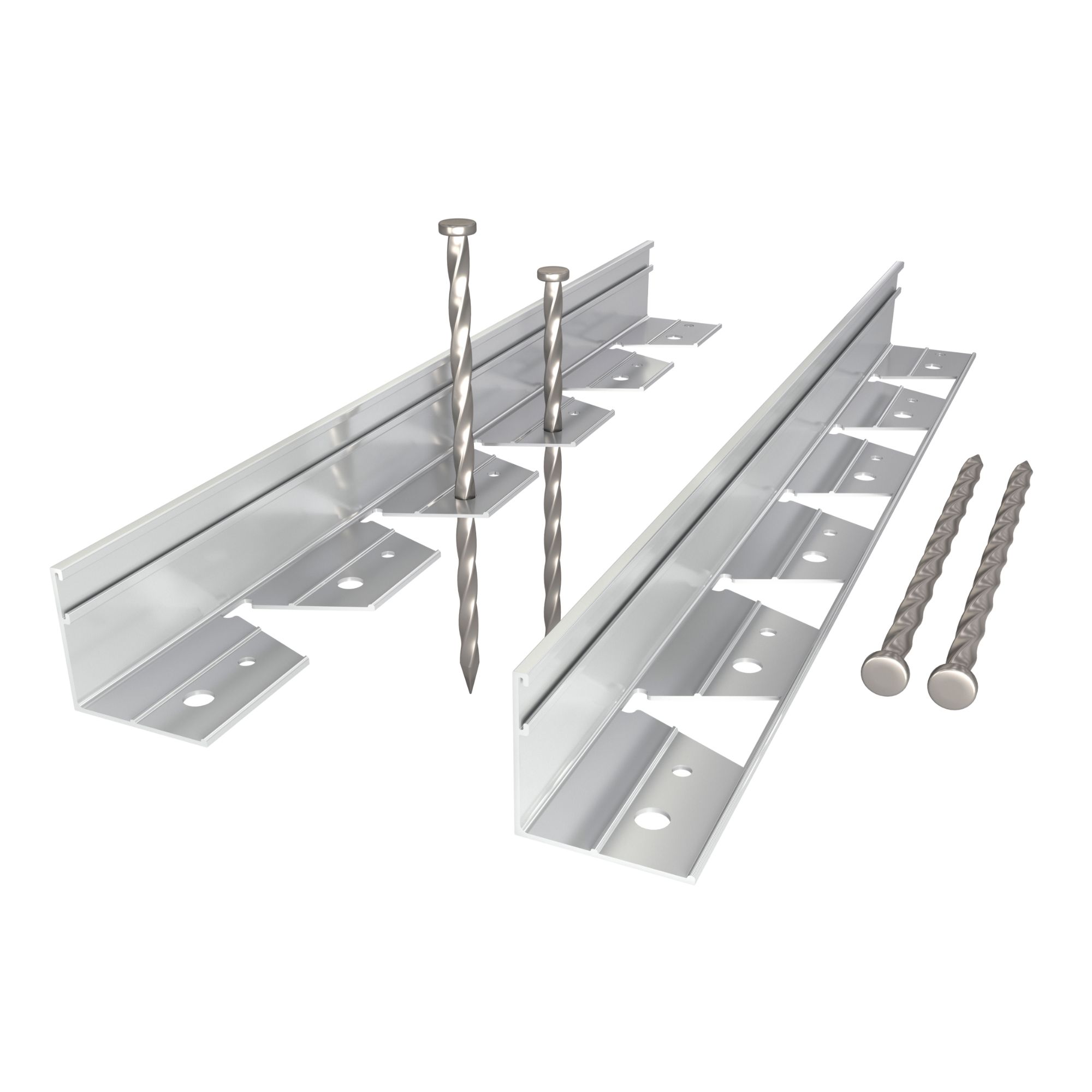

C573 | C573NF | 50mm | 50mm | 2.4m | 20 | 48m |
C574 | C574NF | 64mm | 50mm | 2.4m | 20 | 48m |
C575 | C575NF | 75mm | 70mm | 2.4m | 15 | 36m |
C576 | C576NF | 100mm | 70mm | 2.4m | 10 | 24m |
C577 | C577NF | 120mm | 70mm | 2.4m | 10 | 24m |
C579 | C579NF | 150mm | 70mm | 2.4m | 10 | 24m |
Steel Fixing Pins Sold Seperately
