Datasheet Downloads
GT_DataSheet_Bodpave85-Spec-Design-Installation.pdf
GT_DataSheet_Bodpave85-Grass-Spec-Design-Installation_min.pdf
GT_DataSheet_Bodpave85-Paving-Grids_min.pdf
GT_DataSheet_Bodpave85-Spec-Design-Installation_min.pdf

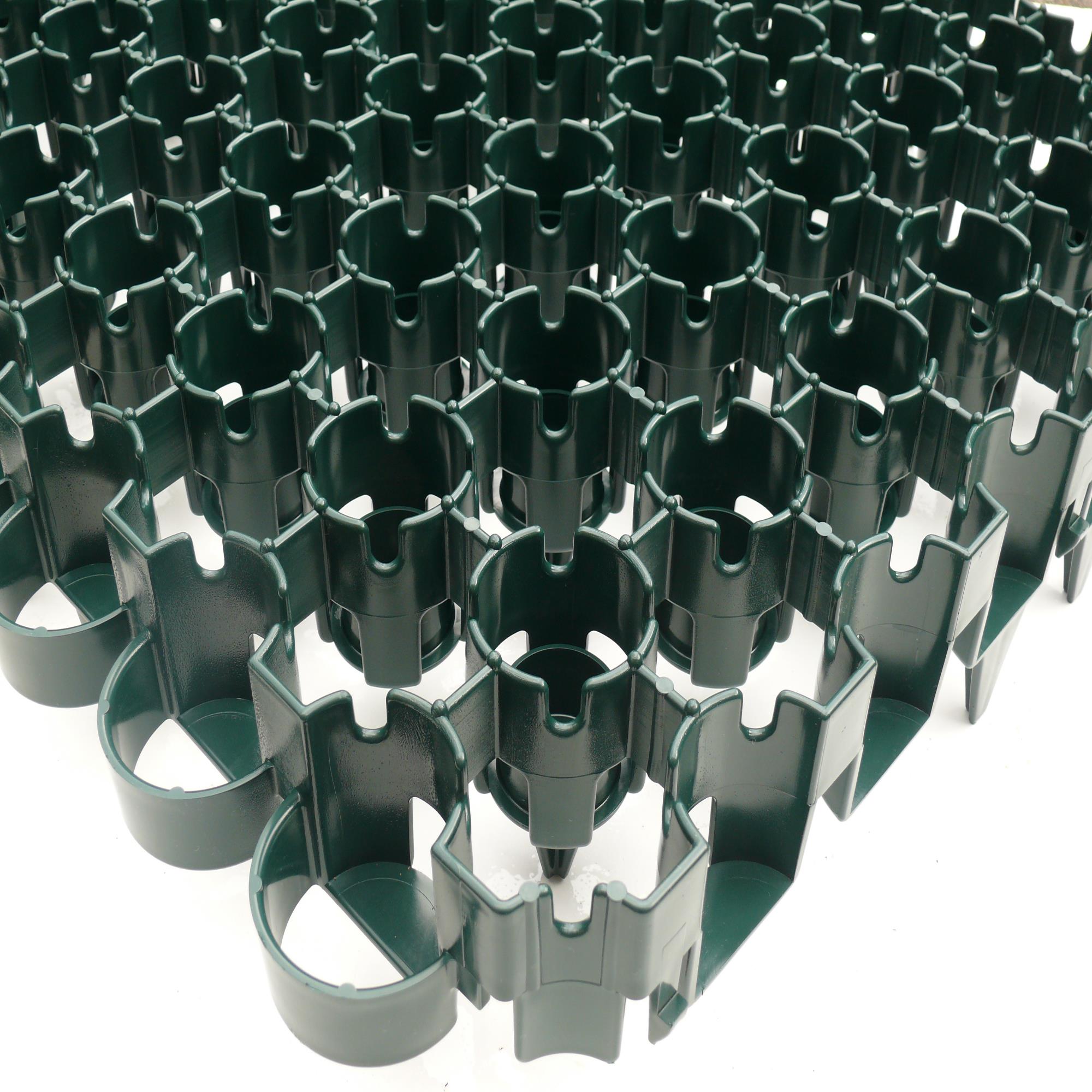

Bodpave 85 Plastic Paver

Product Code: 150WW4080-pro

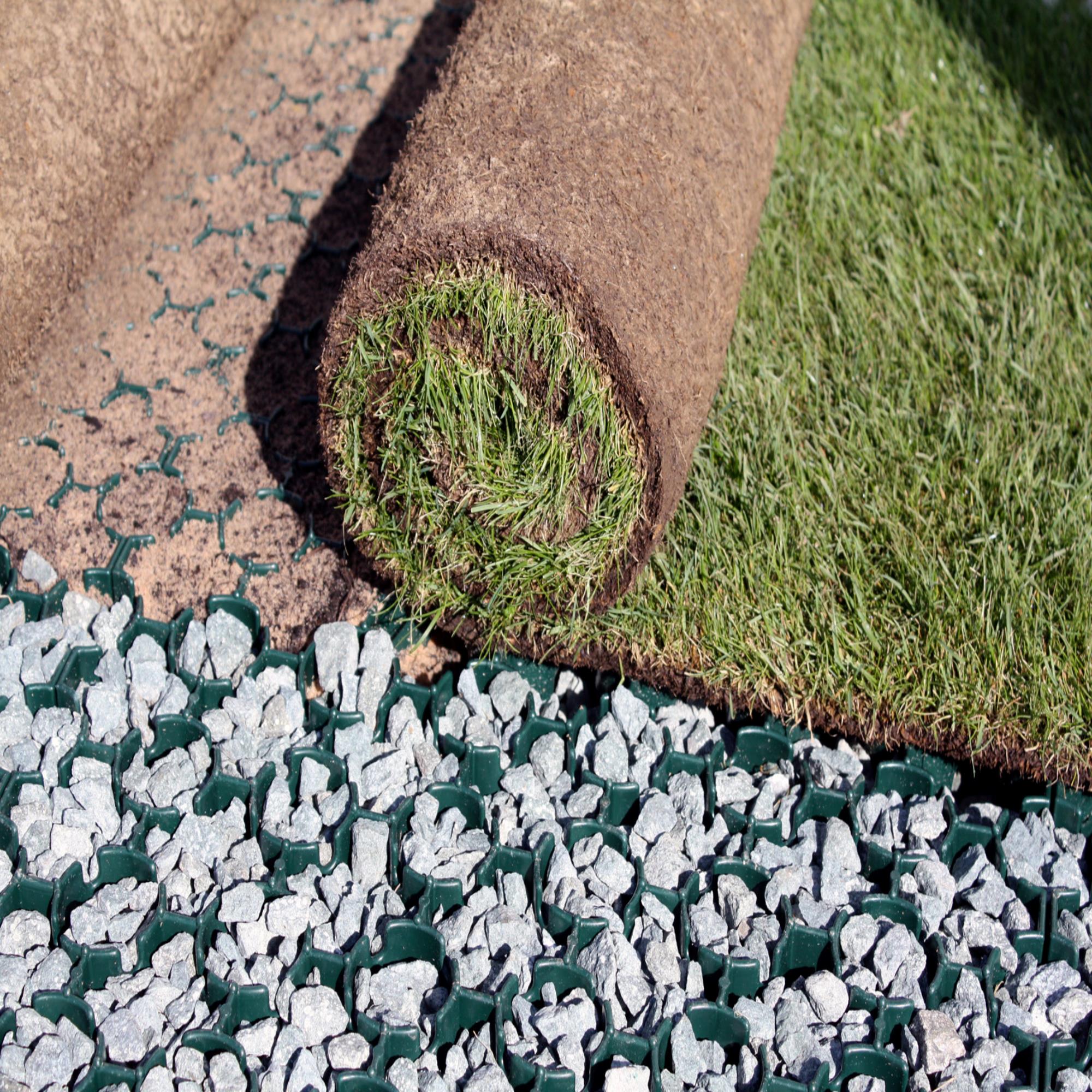

Bodpave® 85 porous pavers can be installed with either a grass or gravel filled surface. Bodpave® 85 pavers/grids are strong interlocking 100% recycled cellular porous plastic paving grid systems for grass reinforcement, ground stabilisation and gravel retention for regular trafficked surfaces (pedestrian and vehicles) BodPave® 85 permeable pavers are manufactured in the UK from UV Stabilised 100% recycled HDPE and are very strong, chemically inert and non-toxic. Bodpave® 85 porous paving provides a durable, safe and environmentally friendly surface for trafficked areas with a very low carbon footprint. BodPave® 85 is a cost effective solution to worn and rutted grassed areas, displaced gravel and for source control of surface water run-off. Bodpave® 85 offers a load bearing capacity of up to 400t/m², will cope with static axle loads up to 60kN.

From £22.00

Bodpave® 85 porous pavers can be installed with either a grass or gravel filled surface. Bodpave® 85 pavers/grids are strong interlocking 100% recycled cellular porous plastic paving grid systems for grass reinforcement, ground stabilisation and gravel retention for regular trafficked surfaces (pedestrian and vehicles) BodPave® 85 permeable pavers are manufactured in the UK from UV Stabilised 100% recycled HDPE and are very strong, chemically inert and non-toxic. Bodpave® 85 porous paving provides a durable, safe and environmentally friendly surface for trafficked areas with a very low carbon footprint. BodPave® 85 is a cost effective solution to worn and rutted grassed areas, displaced gravel and for source control of surface water run-off. Bodpave® 85 offers a load bearing capacity of up to 400t/m², will cope with static axle loads up to 60kN.

Applications (Grass or Gravel)

  • Car Parking / Coach Parking bays
  • Overspill / overflow grass car parks
  • Emergency Service (Fire access routes)
  • Grass aircraft taxiways & helipads
  • Walkways and disabled access routes
  • Golf buggy paths
  • Driveways and residential lawn parking
  • SUDS source control

Features and Benefits:

  • Load bearing capacity up to 400t/m² - will cope with static axle loads up to 100kN
  • Supplied as 4 pre-connected pavers (1m x 1m) - allows rapid installation
  • 24 interlocking connections per paver – excellent lateral transfer of traffic loads
  • 18 ground spikes per paver – excellent shear connection with the ground allows slopes up to 1:8 / 12% / 7° and generally no pinning required
  • Expansion/contraction tolerant – suitable for hot and cold climates • Manufactured from 100% recycled and recyclable polymers – highly sustainable, non-toxic and chemically inert to chemically naturally found in soils
  • British manufactured - lower transport carbon footprint for UK deliveries
  • 92% open surface structure- SUDS source control compliant
  • Grass or gravel finish - free draining and naturally pleasing appearance
  • Paving grids can be offset by 1 cell increments – east to fit around obstacles

Bodpave 85 Plastic Paver Specification

PAVER SIZE (mm)

NOMINAL CELL SIZE (mm)

QUANTITY (per m2

COLOUR

LOAD BEARING CAPACITY

WEIGHT(Nominal)

MATERIAL

500 x 500 x 50 + fixing spike

67 Plaque (Curciform) & 46 Round

4 Grids

Black

400tonnes/m2

n 6.24kg/m2

Recycled Polyethylene

500 x 500 x 50 + fixing spike

67 Plaque (Curciform) & 46 Round

4 Grids

Green

400tonnes/m2

n 6.24kg/m2

Recycled Polyethylene

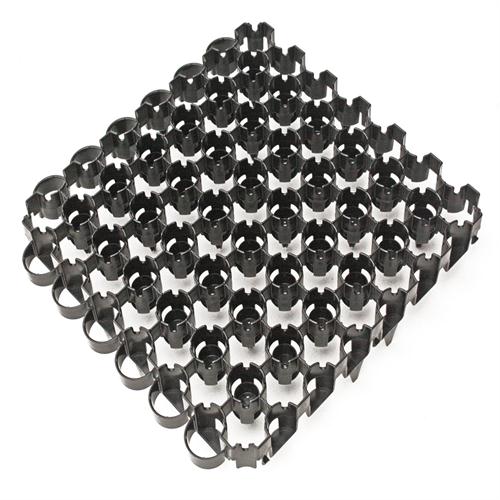

Bodpave 85 Black Load bearing capacity up to 400t/m² - will cope with static axle loads up to 100kN Supplied as 4 pre-connected pavers (1m x 1m) - allows rapid installation 24 interlocking connections per paver – excellent lateral transfer of traffic loads 18 ground spikes per paver – excellent shear connection with the ground allows slopes up to 1:8 / 12% / 7° and generally no pinning required Expansion/contraction tolerant – suitable for hot and cold climates • Manufactured from 100% recycled and recyclable polymers – highly sustainable, non-toxic and chemically inert to chemically naturally found in soils British manufactured - lower transport carbon footprint for UK deliveries 92% open surface structure- SUDS source control compliant Grass or gravel finish - free draining and naturally pleasing appearance Paving grids can be offset by 1 cell increments – east to fit around obstacles Bodpave 85 Plastic Paver Specification PAVER SIZE (mm) NOMINAL CELL SIZE (mm) QUANTITY (per m2 COLOUR LOAD BEARING CAPACITY WEIGHT(Nominal) MATERIAL 500 x 500 x 50 67 Plaque (Curciform) & 46 Round 4 Grids Black 400tonnes/m2 n 6.24kg/m2 Recycled Polyethylene 500 x 500 x 50 67 Plaque (Curciform) & 46 Round 4 Grids Green 400tonnes/m2 n 6.24kg/m2 Recycled Polyethylene
