Terram Geocell Slope Erosion Control

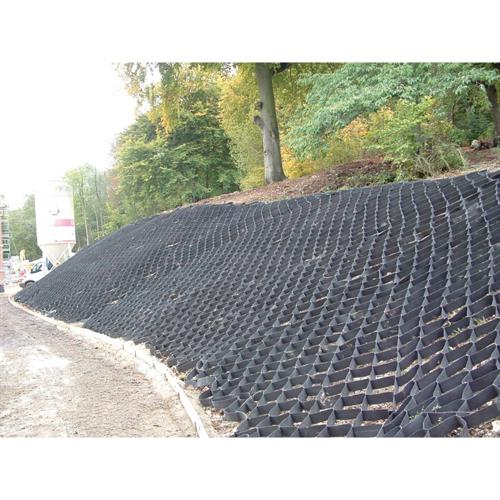

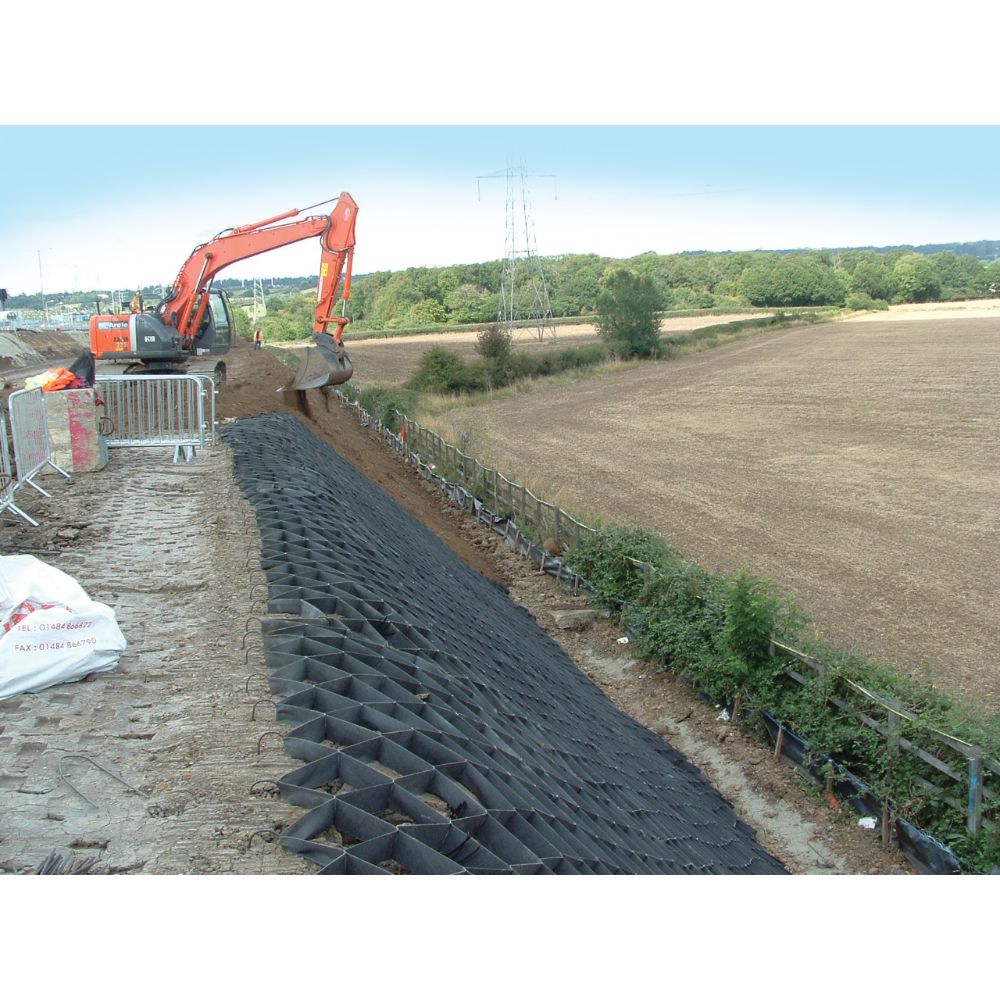

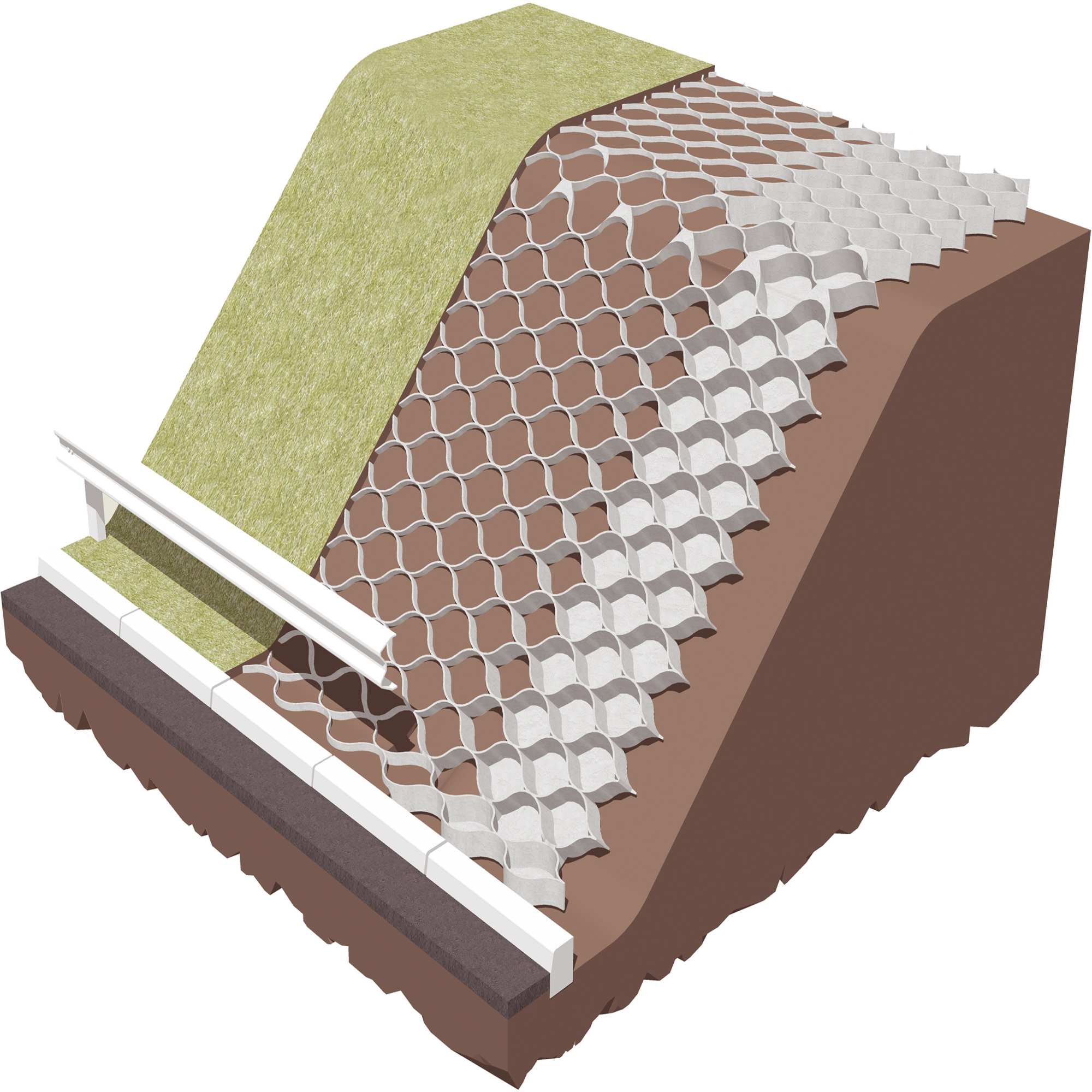

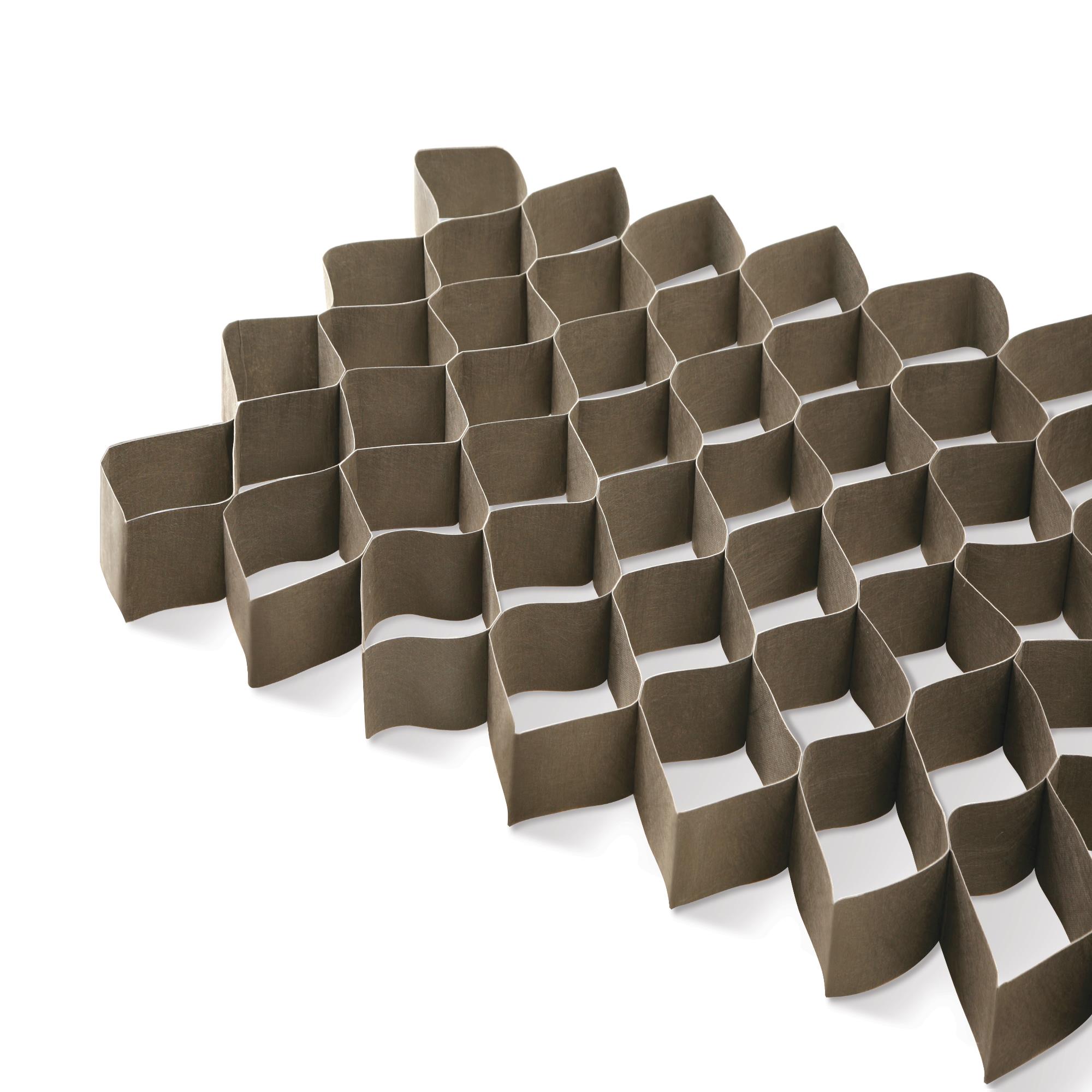

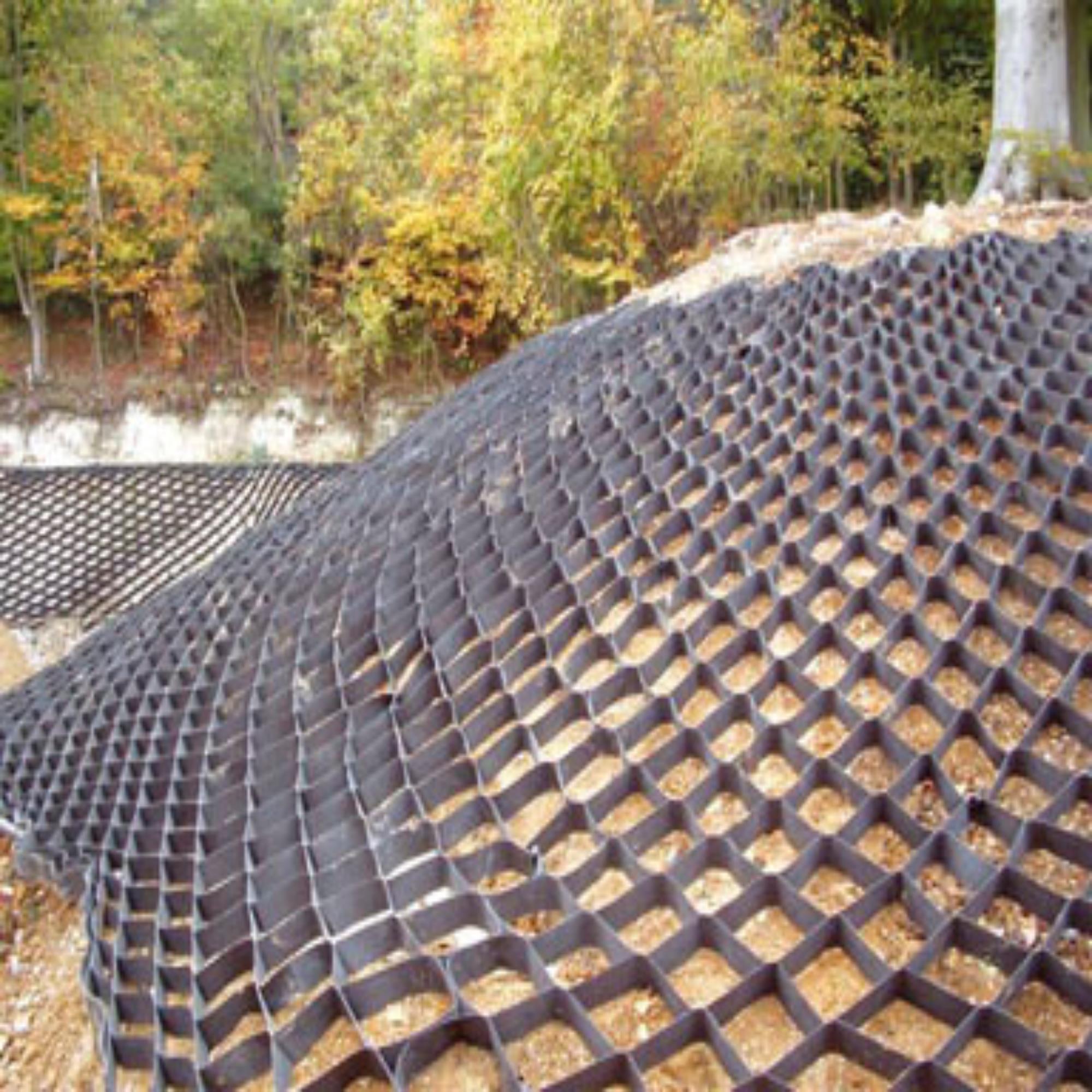

Terram Geocell can be used on slopes up to 1:1 to resist the erosive effects of wind and water run off by confining infill within it’s honeycomb-like structure. Made from a permeable geotextile Terram Geocell allows the free flow of water between cells which encourages drainage and vegetation establishment. The panels (supplied flat packed) are flexible enough to be formed around trees and other obstacles.
Notice
This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.
Terram Geocell can be used on slopes up to 1:1 to resist the erosive effects of wind and water run off by confining infill within it’s honeycomb-like structure. Made from a permeable geotextile Terram Geocell allows the free flow of water between cells which encourages drainage and vegetation establishment. The panels (supplied flat packed) are flexible enough to be formed around trees and other obstacles.
Terram Geocell BENEFITS:
- A great solution to protect abutment and geomembrane
- Quick, efficient and safe installation
- Extremely high strength
Applications
- Cut or fill embankments
- Dams or spillways
- Revetments
- Abutment protection
- Geomembrane protection
- Landfill lining
|
Type
|
Panel Size (m) |
Cell Ø (mm) |
Cell Depth (mm) |
Panel Weight |
Slope Type |
|
Geocell 25/10 |
5 x 7 |
250 |
100 |
17kg |
Large/ Medium* 33-45° |
|
Geocell 25/15 |
5 x 7 |
250 |
150 |
25kg |
Large/ Medium* 33-45° |
|
Geocell 35/10 |
5 x 7 |
350 |
100 |
11kg |
Small* Up to 30° |
|
Geocell 35/15 |
5 x 7 |
350 |
150 |
17kg |
Small* Up to 30° |
*These are typical profiles only.
