Datasheet Downloads
GT_DataSheet_Standard_Geotextiles.pdf

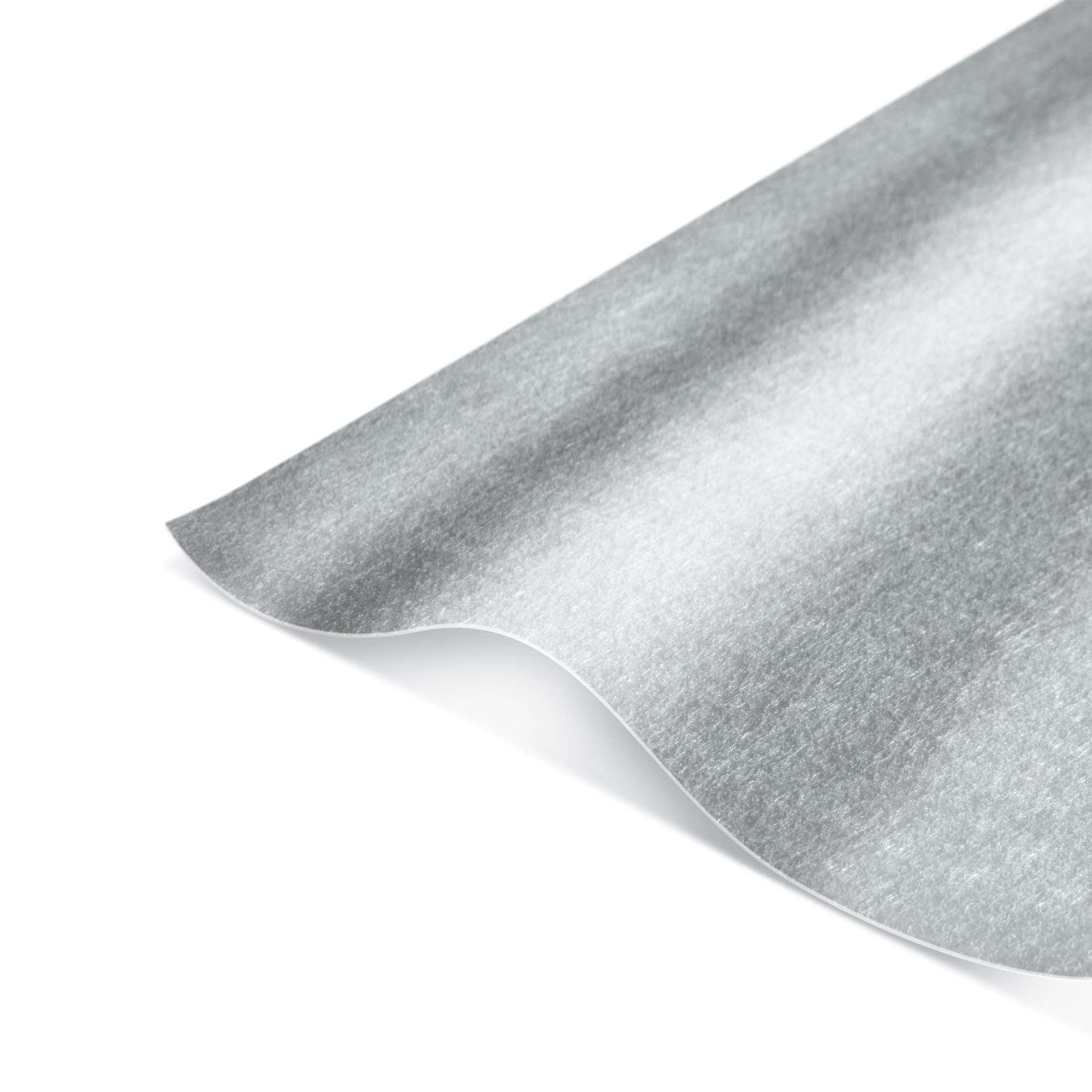

Terram 1000 Geotextile Fabric

Product Code: 150WW4000-pro

Terram 1000 Robust and durable, Terram T1000 geotextile helps prevent the intermixing of solid particles between the layers of soil, yet still permits water to permeate. The tensile strength, high stiffness and permeability of Terram T1000 geotextiles make them ideal for material separation purposes within pavements

From £44.00

Terram 1000 Robust and durable, Terram T1000 geotextile helps prevent the intermixing of solid particles between the layers of soil, yet still permits water to permeate. The tensile strength, high stiffness and permeability of Terram 1000 geotextiles make them ideal for material separation purposes within pavements.

Applications

  • Minimises the need for excavation and replacement of the original ground
  • Reduces the loss of granular material into the subgrade
  • Allows initial fill layers to be placed over particularly soft ground without construction vehicles becoming stuck

Terram 1000 Benefits

  • Terram makes it easier to spread granular material over soft areas.
  • Minimises the need for excavation and replacement of the original ground.
  • Terram reduces the loss of granular material into the subgrade.
  • Allows work to continue during bad weather.
  • Allows more open gradings to be used for sub-base materials.
  • Terram T1000 allows initial fill layers to be placed over particularly soft ground without construction vehicles becoming stuck.

Type

Size

Application

Mini/Builder Pack

4.5 x 11.1m

Domestic

Roll

2.25 x 100m

Commercial

Roll

4.5 x 100m

Commercial


Test Method

Unit

T1000 GT

T1500 GT

T2000 GT

T3000 GT

T4000 GT

4. MECHANICAL PROPERTIES

Tensile Strength EN ISO 10319

kN/m

8.0 (-0.8)

12.5 (-1.25)

14.5 (-1.45)

18.0 (-1.8)

22.0 (-2.2)

Tensile Elongation

%

60 (±20)

60 (±20)

60 (±20)

60 (±20)

60 (±20)

CBR Puncture Resistance EN ISO 12236

N

1500 (-150)

2250 (-225)

2750 (-275)

3250 (-325)

4300 (-430)

Cone Drop EN ISO 13433

mm

38 (+6)

32 (+6)

26 (+5)

24 (+4)

22 (+4)

5. HYDRAULIC PROPERTIES

Pore Size - Mean AOS EN ISO 12956

µm

75 (±20)

65 (±20)

65 (±20)

60 (±20)

60 (±20)

Permeability—(H50) EN ISO 11058

l/m2s

90 (-27)

65 (-20)

55 (-17)

50 (-15)

30 (-9)
