Roof Garden Roofdrain

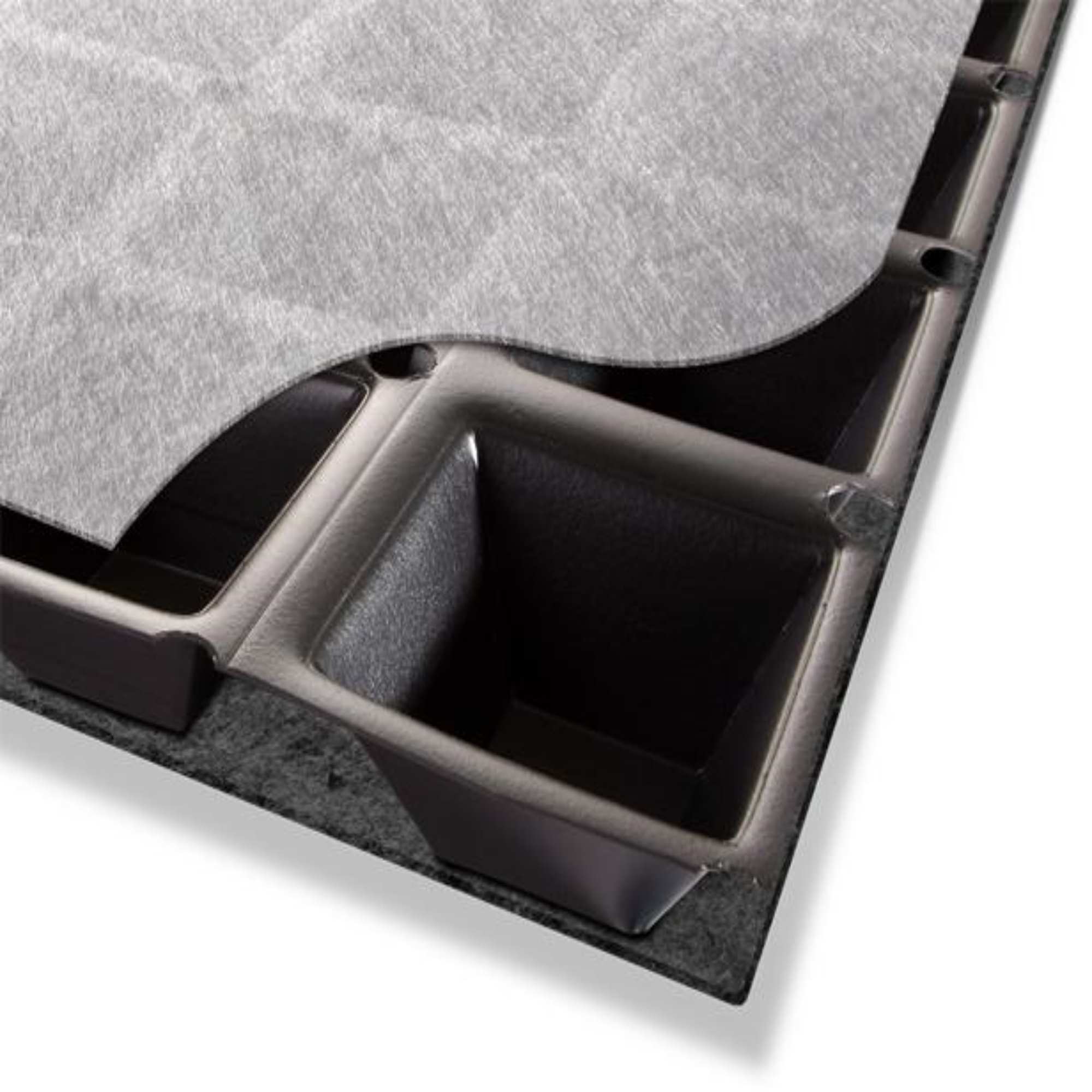

Roofdrain forms a lightweight high performance drainage layer with integrated filter geotextile (Roofdrain 60 does not have geotextile layer included). Using gt Roofdrain allows for the collection and storage of water to irrigate the plants during low rainfall periods whilst providing a continuous drainage layer across the roof structure. The core acts as a water reservoir for plant roots to access in dry periods. gt Roofdrain is ideal for extensive green roofs and roof garden landscaping construction projects, as it provides a lightweight drainage layer and water reservoir to sustain plant growth.
Notice
This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.
Roofdrain forms a lightweight high performance drainage layer with integrated filter geotextile (Roofdrain 60 does not have geotextile layer included). Using gt Roofdrain allows for the collection and storage of water to irrigate the plants during low rainfall periods whilst providing a continuous drainage layer across the roof structure. The core acts as a water reservoir for plant roots to access in dry periods. gt Roofdrain is ideal for extensive green roofs and roof garden landscaping construction projects, as it provides a lightweight drainage layer and water reservoir to sustain plant growth.
Benefits of Roofdrain:
- Prevents plants from drying out
- Prevents waterlogging
- Provides drainage
- Assists in roof cooling
- Lightweight
- Easy to install
Roofdrain Sizes Available and Capacity
|
Product |
Thickness |
Reservoir Capacity |
Roll Size |
|
Roofdrain 20 |
20mm |
5.5l/m2 |
92cm x 50m |
|
Roofdrain 25 |
25mm |
4.3l/m2 |
92cm x 50m |
|
Roofdrain 40 |
40mm |
12l/m2 |
92cm x 20m |
|
Roofdrain 60 |
60mm |
23l/m2 |
92cm x 15m |
Roofdrain 60 does not have geotextile layer included
