Roof Garden Deckdrain

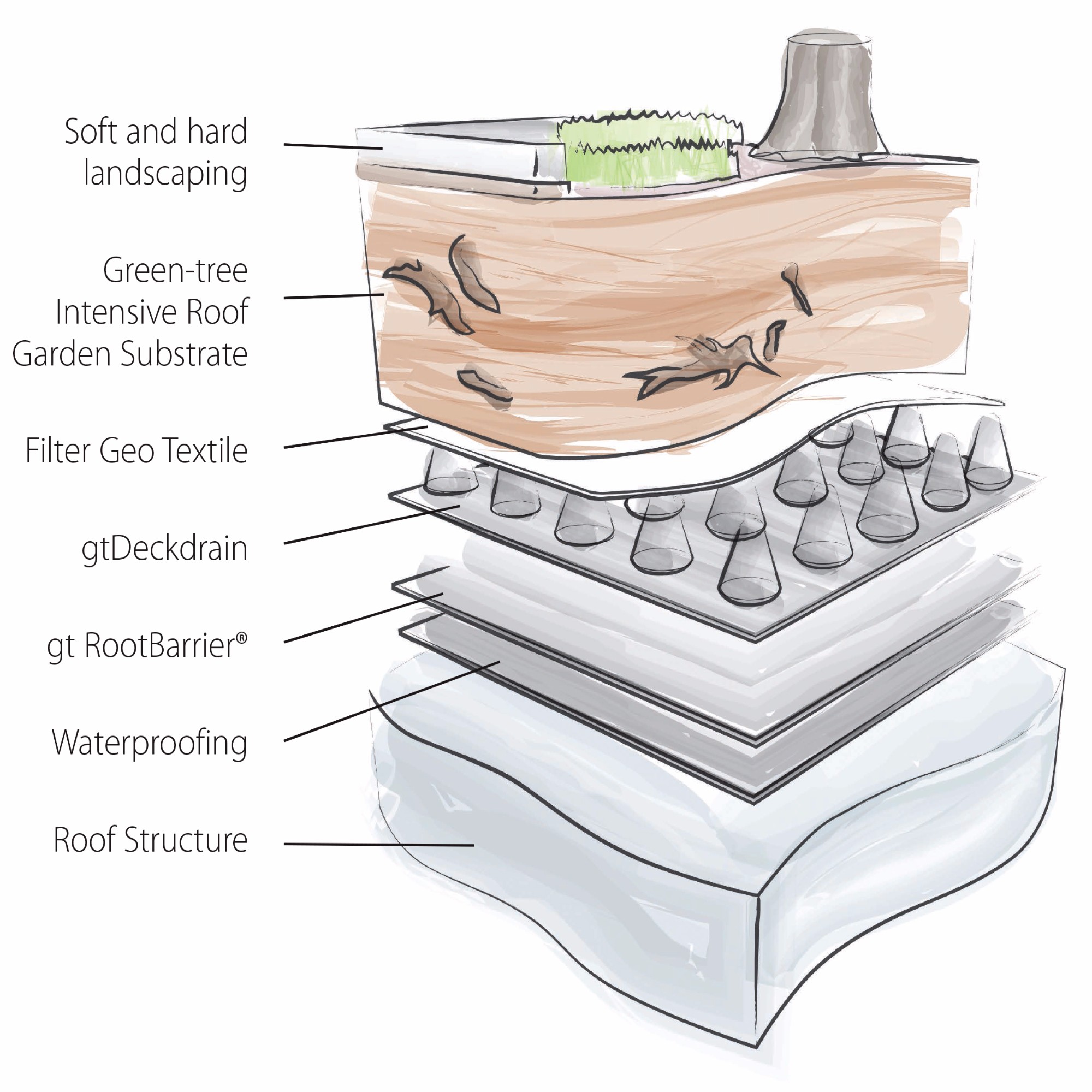

Deckdrain forms a lightweight high performance drainage layer with integrated filter geotextile that eliminates clogging within the drainage structure that provides a continuous drainage layer across the structure. It has been specifically developed to provide high flow capacity and added protection to waterproofing for intensive green roofs and roof gardens. gt Deckdrain is durable and sufficiently robust to resist the mechanical stresses imposed during installation and then on throughout its design life.
Notice
This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.
Deckdrain forms a lightweight high performance drainage layer with integrated filter geotextile that eliminates clogging within the drainage structure that provides a continuous drainage layer across the structure. It has been specifically developed to provide high flow capacity and added protection to waterproofing for intensive green roofs and roof gardens. gt Deckdrain is durable and sufficiently robust to resist the mechanical stresses imposed during installation and then on throughout its design life.
Benefits of Deckdrain:
- Provides continuous drainage
- Protects the waterproofing layer
- Durable and robust
- Consistent irrigation for plants, shrubs and trees
- Lightweight
- Simple to install
Deckdrain Sizes and Flow Rate Specifications
|
Product |
Thickness |
Flow Rate* |
Puncture Resistance |
Roll Size |
|
Deckdrain 700 |
7mm |
0.67 |
2400N |
1.1m x 50m |
|

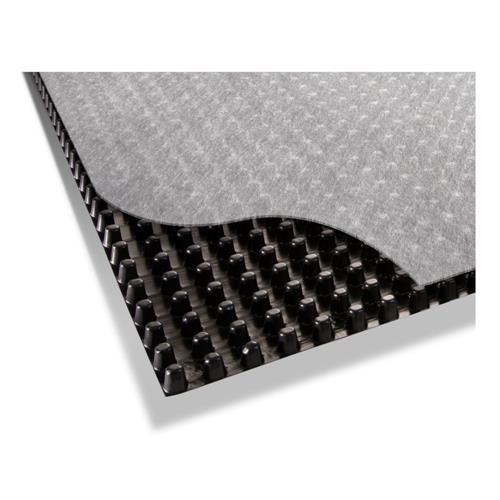

Deckdrain 1200 |
12mm |
1.25 |
2300N |
1.1m x 50m |
|

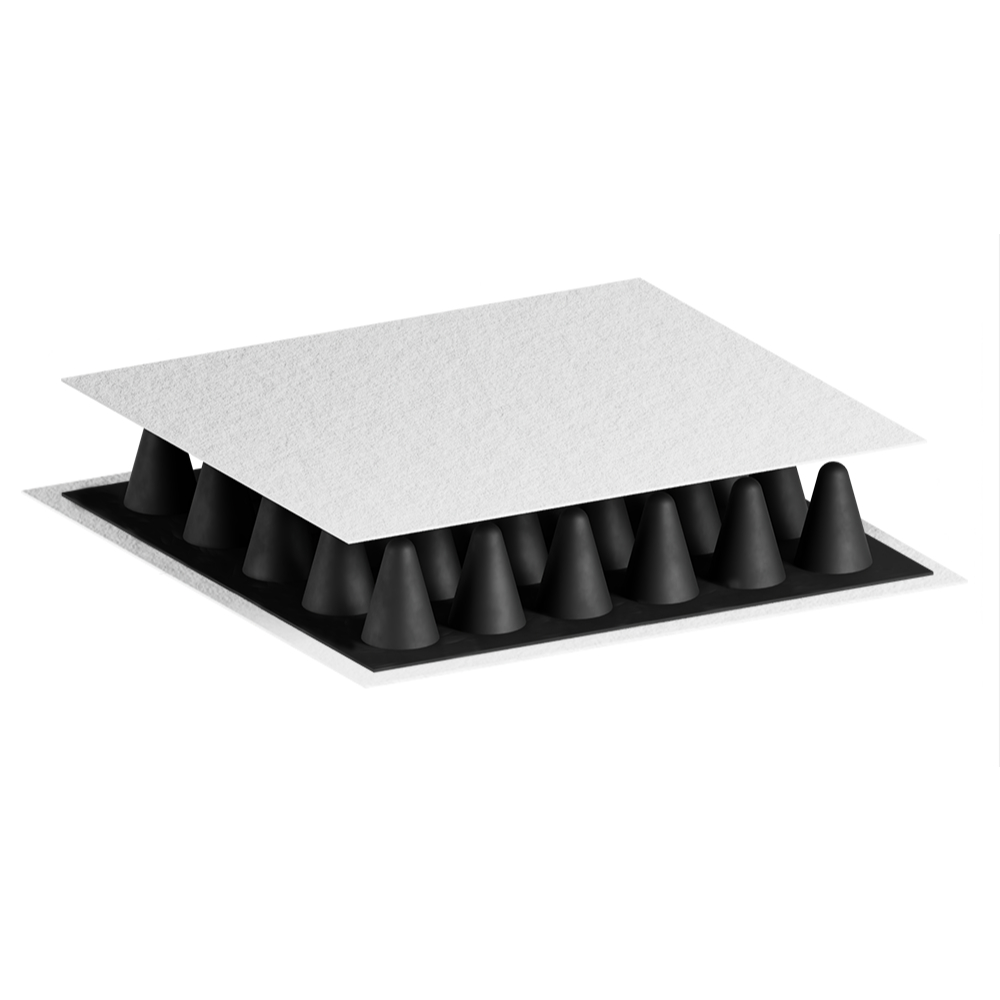

Deckdrain 2500 |
25mm |
4.30 |
4800N |
915mm x 50m |
|

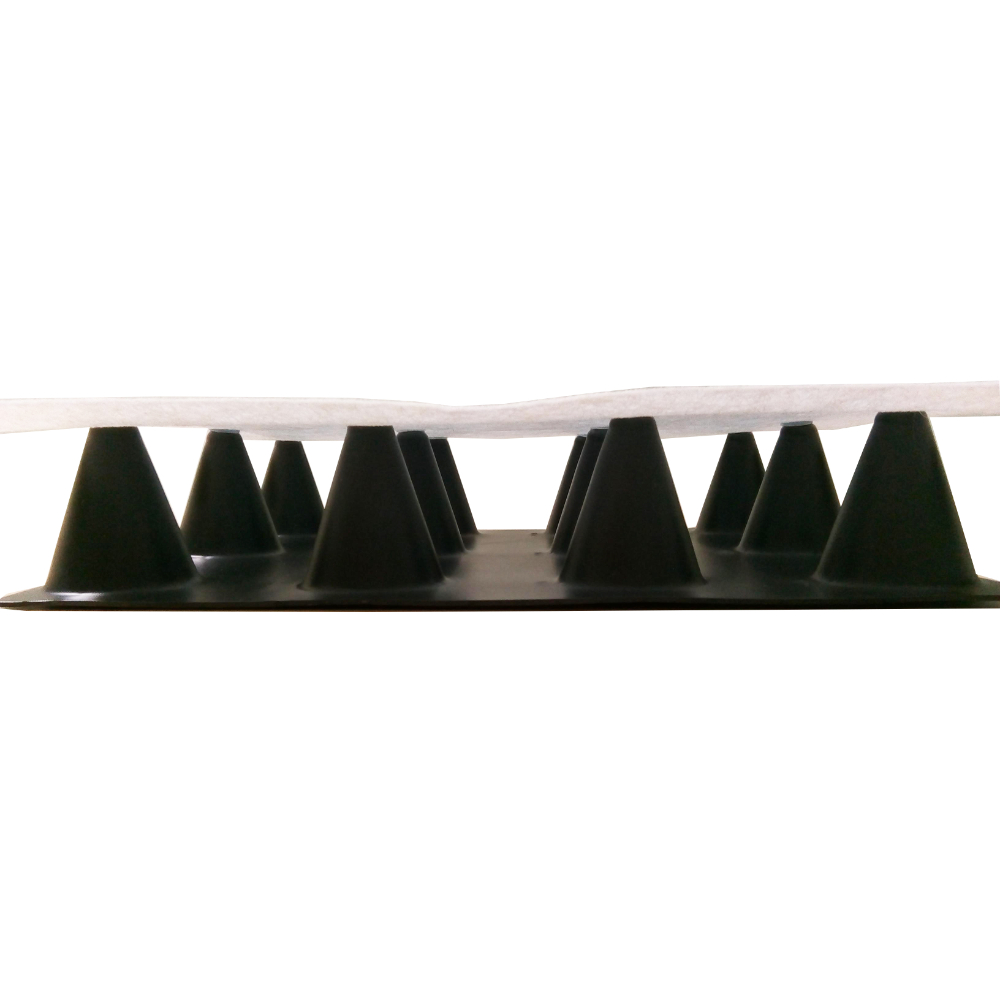

Deckdrain 5000 |
50mm |
29.00 |
N/A |
915mm x 25m |
*Flow rate determined at HG=0.1 and under 20kPa load which represents the hydraulic gradient typical to a horizontal roof construction.
